  6. Capacitor-Start Aeration Fan Motor, 2 HP, 115/230V AC Voltage, 143TZ Frame, 3,450 Nameplate RPM

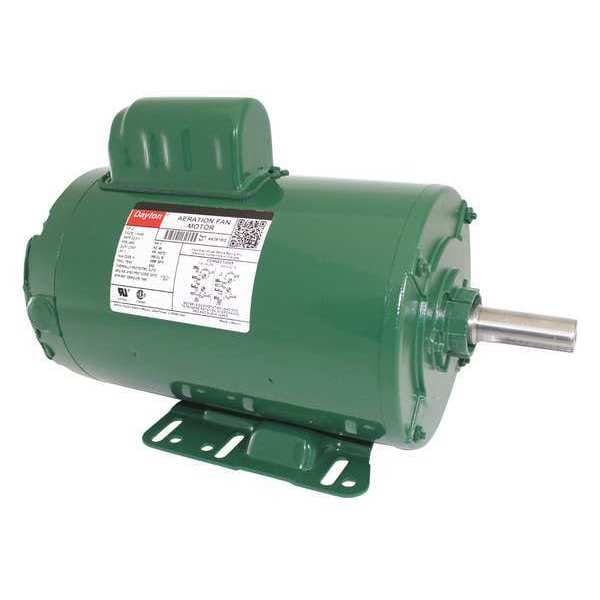

Dayton Capacitor-Start Aeration Fan Motor, 2 HP, 115/230V AC Voltage, 143TZ Frame, 3,450 Nameplate RPM 4K061 - main

Capacitor-Start Aeration Fan Motor, 2 HP, 115/230V AC Voltage, 143TZ Frame, 3,450 Nameplate RPM

  • Mfr # 4K061

  • Zoro # G1986089

product price:  $576.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Rigid Base
HP
2
RPM Range
3,001-3,600
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4K061
Zoro #
G1986089
UPC #
190735327401
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Overall Length
13 3/4 in
Shaft Length
2 1/4 in
Length Less Shaft
11 1/2 in

Details

Item
Aeration Fan Motor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Rigid Base
HP
2
RPM Range
3,001-3,600
Voltage
115/230V AC
Frame
143TZ
Motor Thermal Protection
Auto
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
Farm Duty
Motor Sub Application
Aeration Fan
Nameplate RPM
3,450
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified (258501), UL Recognized (E37403)
Item - Farm Duty Motors
Aeration Fan Motor
Includes
1/4-20 UNC-2B 3/4 in Deep Tapped Hole in Shaft, Gasketed Terminal Access Cover, Shaft Key
Ins. Class
B
Frame Material
Steel
Hz
60 Hz
Full Load Amps
22.2/11.1 A
Duty
Continuous Air Over
Motor Bearings
Ball
Phase
Single
Capacitor Required
Included
Nominal Efficiency
76.2 %
Finish
Enamel
Max. Ambient Temperature
50 Degrees C
Max. Ambient Temp.
50 Degrees C
Duty Cycle
Continuous

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 22.2/11.1 A, 143TZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
