Shop DAYTON

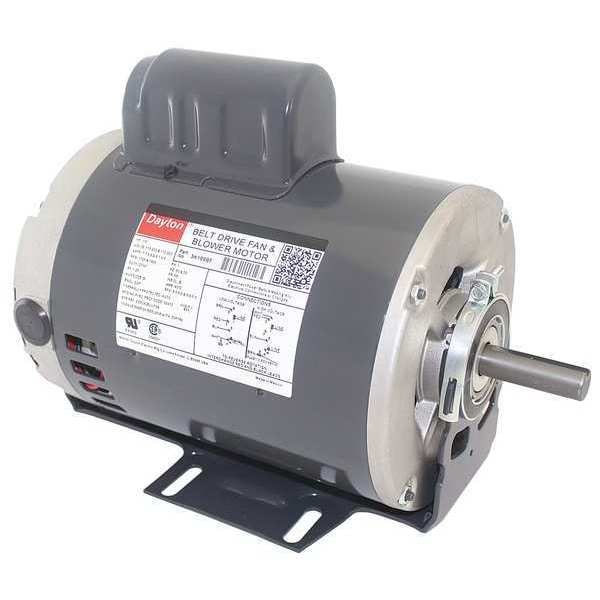

Capacitor-Start Belt Drive Motor, 1/2 HP, 115/230V AC Voltage, 56 Frame, 1,725 Nameplate RPM

  • Mfr # 3K199
  • Zoro # G2344867
product price:
$
421.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
HP
1/2
RPM Range
1,701-1,800
Voltage
115V AC, 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3K199
Zoro #
G2344867
UPC #
190735290170
Country of Origin
Mexico
Item
Belt Drive Motor
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
HP
1/2
RPM Range
1,701-1,800
Voltage
115V AC, 230V AC
Frame
56
Motor Thermal Protection
Auto
Motor Service Factor
1.25
No. of Speeds
1
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Nameplate RPM
1,725
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA (258501), UL (E37403)
Footnotes
6
Full Load Amps
7.7/3.8 A
Motor Bearings
Ball
Duty
Continuous
Hz
50/60 Hz
Frame Material
Steel
Max. Ambient Temp.
104 Degrees F
Phase
Single
Ins. Class
B
Duty Cycle
Continuous
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.25
Drive Type
Belt Drive
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Frequency
60/50 Hz
Number of Speeds
1
Insulation Class
B
Application
Fan/Blower
Bearing Type
Ball
Mounting Position
All Angle
Shaft Design
Keyed
Full Load Current @ 60 Hz
7.7/3.8 A
Product Type
Fan and Blower Motor

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 7.7/3.8 A Full Load Amps, 56 Frame, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
