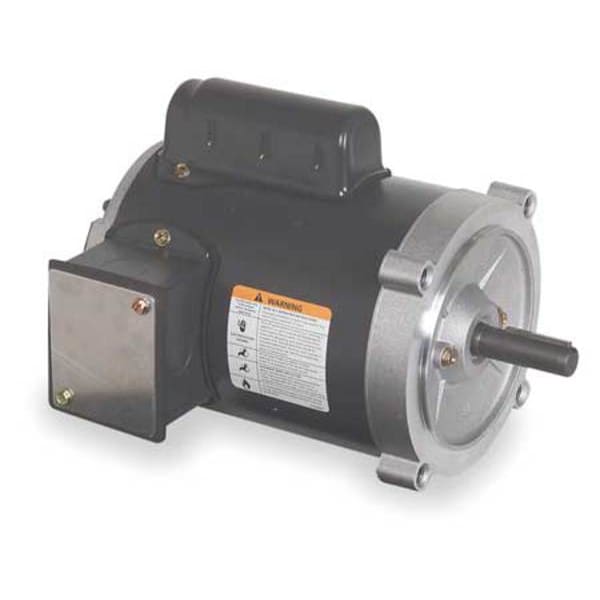

Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56C Frame
Mfr # 5GD55
Zoro # G2083146
product price: $222.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Mounting Type
C-Face, Rigid Base
HP
1/3 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5GD55
Zoro #
G2083146
UPC #
190735343791
Country of Origin
Mexico
Dimensions
Length Less Shaft
8 1/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Overall Length
9 13/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 3,460 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.3/2.5-2.2 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
