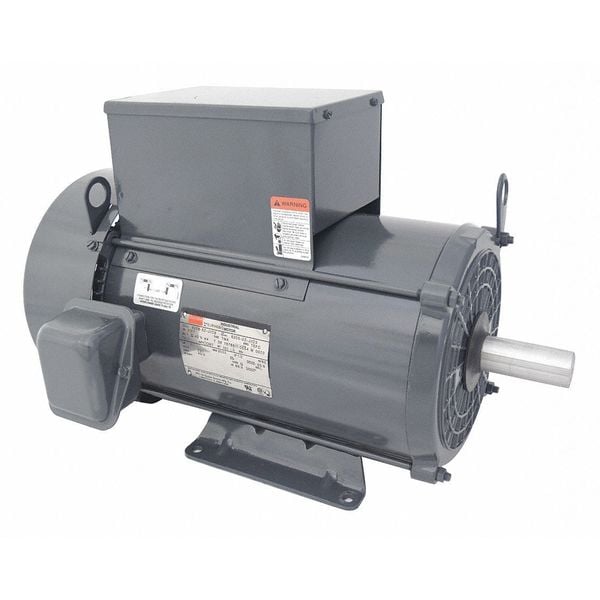

Capacitor-Start/Run General Purpose Motor, 10 hp HP, 230V AC Voltage, 215T Frame

  • Mfr # 5UKH0

  • Zoro # G3270154

product price:
$
2,387.99
/ea
Additional $170.00 delivery surcharge applies per item.
See details

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
10 hp
RPM Range
3,001-3,600
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5UKH0
Zoro #
G3270154
UPC #
190735351826
Country of Origin
Mexico
Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
10 hp
RPM Range
3,001-3,600
Voltage
230V AC
Frame
215T
Motor Thermal Protection
None
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
3,535 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CE, CSA, UL
Max. Ambient Temp.
40 Degrees C
Full Load Amps
40.0 A
Motor Efficiency Group
Energy Efficient
Motor Bearings
Ball
Frame Material
Steel
Hz
60 Hz
RPM Group
3001-3600
Nominal Efficiency
85.5 %
Ins. Class
F
Phase
Single
Includes
Conduit Box
Duty
Continuous
Duty Cycle
Continuous
Mounting Position
All Angle
Full Load Current @ 60 Hz
40.0 A
Insulation Class
F
Efficiency Rating
High Efficiency (IE2)
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1
Application
General Purpose
Number of Speeds
1
Frequency
60 Hz
Bearing Type
Ball
Manufacturers Warranty
1 yr
Product Type
General Purpose Motor
Shaft Design
Keyed

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 hp HP, Nameplate RPM 3,535 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 40.0 A, 215T Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
