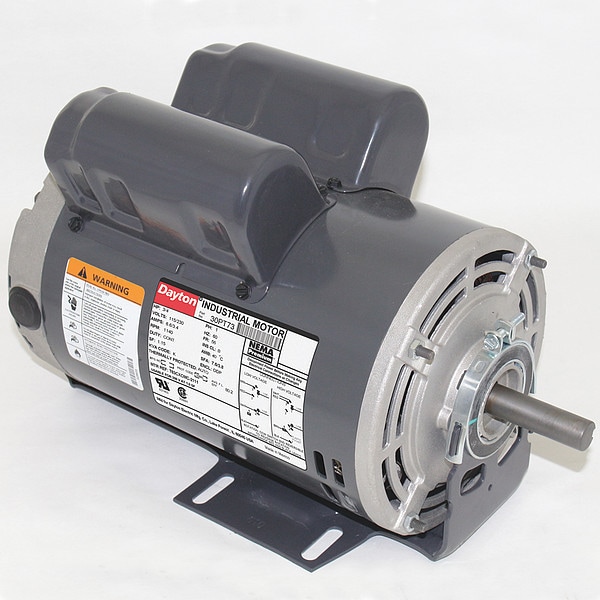

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56 Frame
- Mfr # 30PT73
- Zoro # G9090672
product price:Â
$
871.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
3/4 hp
RPM Range
1,101-1,200
Voltage
115V AC, 230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 30PT73
- Zoro #
- G9090672
- UPC #
- 190735248607
- Country of Origin
- Mexico
Dimensions
- Shaft Length
- 1 7/8 in
- Length Less Shaft
- 11 7/8 in
- Overall Length
- 13 13/16 in
- Shaft Dia.
- 5/8 in
- Manufacturers Warranty Length
- 1 yr
- Shaft Diameter
- 5/8 in
- Frame Size
- 56
- Wire Rope Length
- 13 13/16 in
- Length
- 13 13/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.6/3.4 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Restrictions
Indicates a new DOE energy compliant motor.
