Shop DAYTON

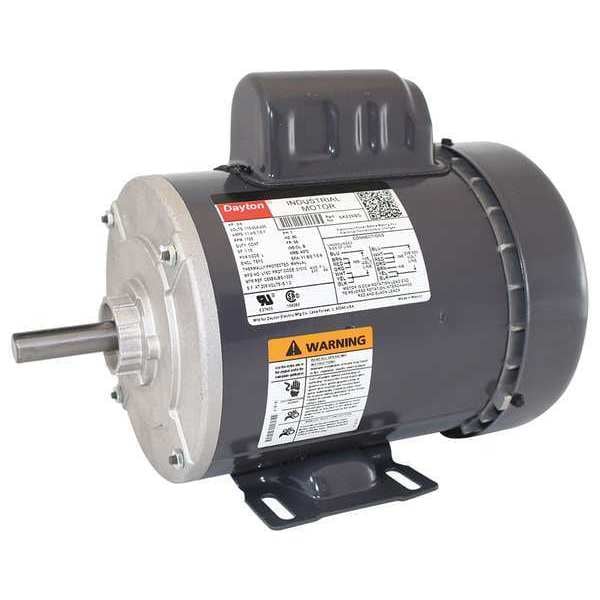

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56 Frame

  • Mfr # 6K639

  • Zoro # G0780376

product price:
$
598.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K639
Zoro #
G0780376
UPC #
190735366295
Country of Origin
Mexico

Dimensions

Overall Length
11 7/8 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
10 in
Wire Rope Length
11 7/8 in
Shaft Diameter
5/8 in
Frame Size
56

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56
Motor Thermal Protection
Manual
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified (156060), UL Recognized (E37403)
Duty
Continuous
RPM Group
1701-1800
Hz
60 Hz
Motor Bearings
Ball
Phase
Single
Full Load Amps
11.4/5.7-5.7 A
Max. Ambient Temp.
40 Degrees C
Motor Efficiency Group
Standard Efficient
Ins. Class
B
Frame Material
Steel
Nominal Efficiency
65 %
Includes
Conduit Box
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Manufacturers Warranty
1 yr
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Product Type
General Purpose Motor
Full Load Current @ 60 Hz
11.4/5.7-5.7 A
Application
General Purpose
Efficiency Rating
Standard Efficiency (IE1)
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball
Mounting Position
All Angle

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 11.4/5.7-5.7 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
