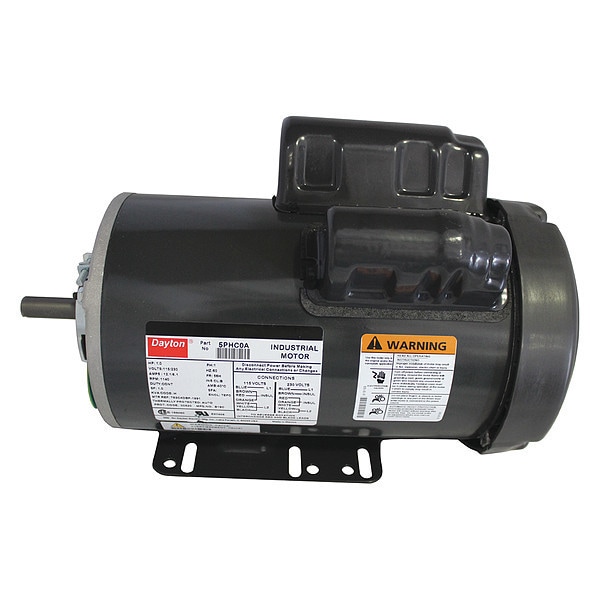

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame

  • Mfr # 5PHC0

  • Zoro # G1306094

product price:  $514.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Cradle Base
HP
1 hp
RPM Range
1,101-1,200
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5PHC0
Zoro #
G1306094
UPC #
190735889954
Country of Origin
Mexico

Dimensions

Overall Length
14 3/4 in
Shaft Dia.
5/8 in
Length Less Shaft
12 13/16 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Lead Length
5"
Frame Size
56H
Shaft Diameter
5/8 in
Wire Rope Length
14 3/4 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Cradle Base
HP
1 hp
RPM Range
1,101-1,200
Voltage
115/230V AC
Frame
56H
Motor Thermal Protection
Auto
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
1,140 RPM
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA Certified (258501), UL Component Recognized (E37403)
Motor Bearings
Ball
Nominal Efficiency
75.7 %
Hz
60 Hz
Phase
Single
Duty
Continuous
Full Load Amps
12.1/6.1 A
Frame Material
Steel
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Efficiency Group
Energy Efficient
Inverter Rated
Not Inverter Rated
Footnotes
24
RPM Group
1101-1200
Duty Cycle
Continuous
Capacitor Required
Included
Number of Wires
7
Ambient Temperature
40
Inverter Rating
Not Inverter Rated
Efficiency Rating
High Efficiency (IE2)
Insulation Class
B
Number of Speeds
1
Shaft Design
Keyed
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
12.1/6.1 A
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
General Purpose Motor

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.1/6.1 A, 56H Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Inverter Rated Not Inverter Rated

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
