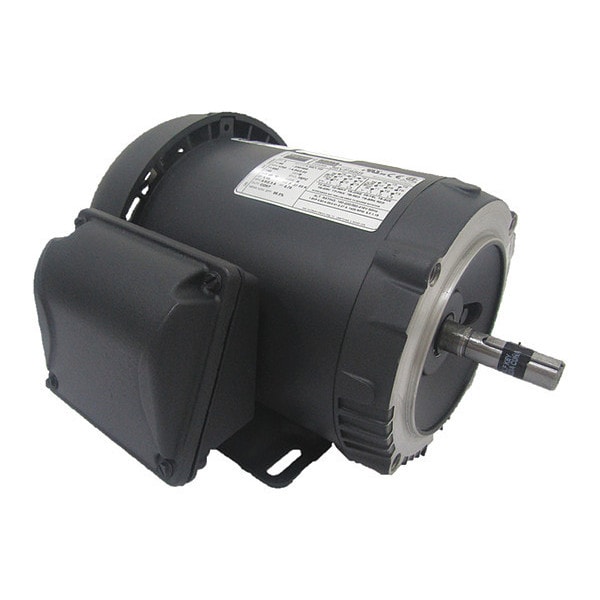

Three-Phase General Purpose Motor, 1 1/2 HP, 56C Frame, 230/460V AC Voltage, 1750 Nameplate RPM

The DAYTON - 36VF88 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate different types of machinery, making it versatile across various sectors from manufacturing lines to HVAC systems.

Key Features of the DAYTON - 36VF88 General Purpose Motor:

• CC Number: The unique identifier CC029A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
• Duty Cycle: This motor is designed for a continuous duty cycle, which may be beneficial for certain industrial applications.
• Frame: The frame size is 56C which conforms to standard specifications for compatibility and interchangeability.
• Full Load Amps: At full capacity operation, this motor draws maximum current of 4.4/2.2 A crucial for determining power supply requirements.
• Inverter Rated: Yes - this suggests that the motor could potentially be powered by a variable frequency drive, which might allow for some level of control over speed and torque.
• Horsepower (HP): The output power of this motor is rated at 11⁄2 HP. It's intended use includes various industrial applications.
• Motor Enclosure Design: The totally enclosed fan-cooled design aims to protect internal components from environmental factors while promoting an efficient cooling method
