Shop CENTURY

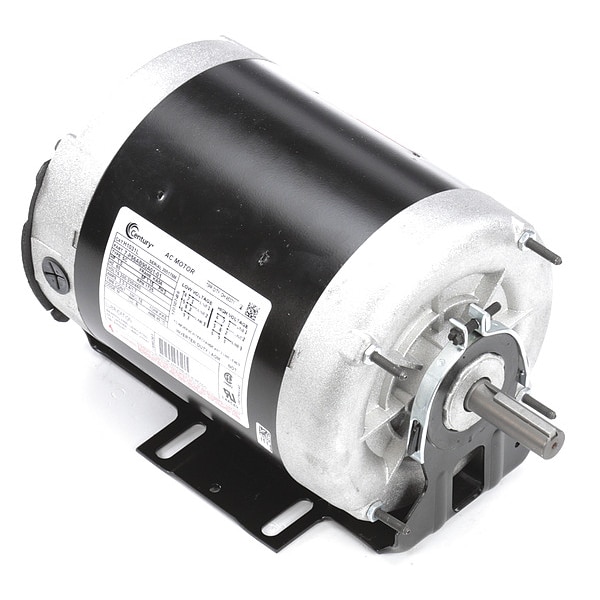

3-Phase Belt Drive Motor, 1 HP, 56 Frame, 200-230/460V AC Voltage, 1,725 Nameplate RPM

  • Mfr # H1031L
  • Zoro # G4000367
product price:
$
390.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H1031L
Zoro #
G4000367
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
9 1/2 in
Shaft Length
1 15/16 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
6 1/2 in
Overall Length
11 7/16 in
Shaft Diameter
5/8 in
Resilient Ring Diameter
2 1/2 in
Body Diameter
6.5 in
Frame Size
56

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
200V AC to 230V AC, 460V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 200V AC to 230V AC, 200V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Nominal Efficiency
82 %
Frame Material
Steel
Motor Mounting Position
All Angle
Standards
CSA, UL Recognized
Duty
Continuous
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Ring to Ring Center
9 in
Ins. Class
B
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Steel
Full Load Amps
3.3-3.4/1.7 A
Footnotes
26
Hz
60 Hz
Extended Thru-Bolts
Yes
Usable @ 208V
Yes
Usable @ 200V
Yes
Duty Cycle
Continuous
Weight
30 lb
NEMA Design
M
Application
Fan/Blower
Product Type
Fan and Blower Motor
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
3.3-3.4/1.7 A
Mounting Position
All Angle
Frequency
60 Hz
Bearing Type
Ball
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Air-Over
Number of Speeds
1
Drive Type
Belt Drive

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 3.3-3.4/1.7 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
