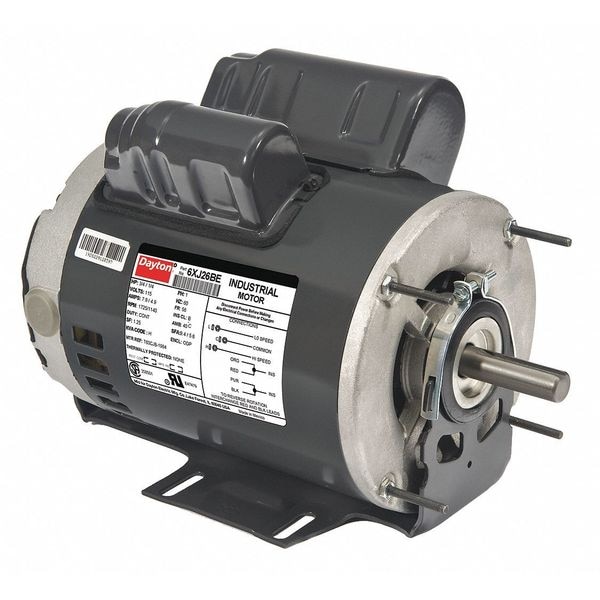

Capacitor-Start/Run General Purpose Motor, 1/4 hp, 3/4 hp HP, 115V AC Voltage, 56 Frame
Mfr # 6XJ26
Zoro # G1614821
product price:Â $631.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/4 hp, 3/4 hp
RPM Range
1,701-1,800
Voltage
115V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6XJ26
- Zoro #
- G1614821
- UPC #
- 190735373491
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 10 13/16 in
- Shaft Length
- 1 7/8 in
- Length Less Shaft
- 8 13/16 in
- Shaft Dia.
- 5/8 in
- Manufacturers Warranty Length
- 1 yr
- Frame Size
- 56
- Shaft Diameter
- 5/8 in
- Wire Rope Length
- 10 13/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp, 3/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 7.9/4.9 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Steel
