Shop CENTURY

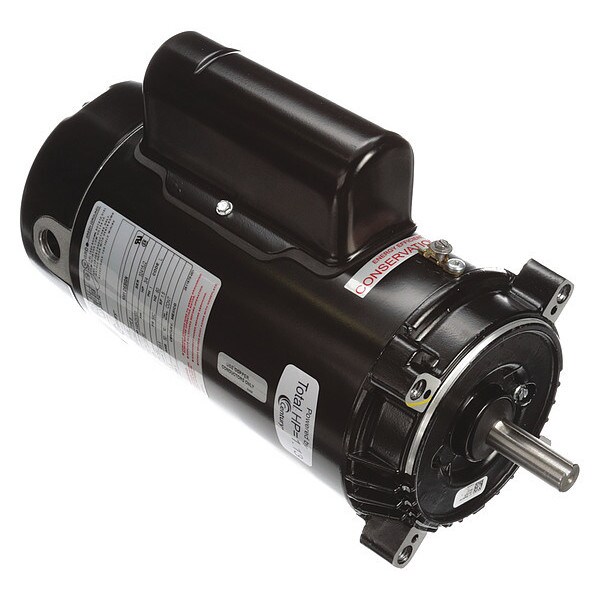

Pool Pump Motor, Capacitor-Start/Run, 3/4 HP, 56C Frame, 3,450 Nameplate RPM

  • Mfr # CK1072

  • Zoro # G3483094

product price:
$
399.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
3/4
Motor Service Factor
1.5
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CK1072
Zoro #
G3483094
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/8 in
Shaft Dia.
5/8 in
Overall Length
13 3/4 in
Body Dia.
5.6 in
Length Less Shaft
11 11/16 in
Height
11 in
Shaft Dia. (In.)
5/8
Frame Size
56C
Body Diameter
5.6 in
Shaft Diameter
5/8 in
Wire Rope Length
13 3/4 in
Length
13 3/4 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
3/4
Motor Service Factor
1.5
RPM Range
3,001-3,600
Nameplate RPM
3,450
Frame
56C
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
115/230V AC
Motor Mounting Type
Face
Full Load Amps
5.5/11.0 A
Motor Thermal Protection
Auto
Motor Sub Application
Pool and Spa Pump
Hz
60 Hz
Motor Application
Pump
Motor Flange Material
Aluminum
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Shaft
Keyed
Motor Efficiency Group
Energy Efficient
Motor Bearings
Ball
Ambient Temperature
50 Degrees C
Standards
CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable
Shaft Material
303 Stainless Steel
Finish
Black
Ins. Class
B
Max. Ambient Temp.
50 Degrees C
Weight
25 lb
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Warranty
2ACC8
Application
Pump
Ambient Temperature - Maximum
50 Degrees C
Product Type
Pump Motor
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
5.5/11.0 A
Nameplate Service Factor @ 60 Hz
1.5
Mounting Position
Horizontal
Frame Material
Steel
Bearing Type
Ball
Number of Wires
11
Shaft Design
Keyed
Number of Speeds
1
Insulation Class
B
Sub Application
Pool and Spa Pump

Description

Pool and Spa Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Finish Black, Frame 56C, Hz 60 Hz, Full Load Amps 5.5/11.0, Height 11 in, HP 3/4, Ins. Class B, Length Less Shaft 11 11/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: AZ, CA, FL, NY
