  11. Ceiling Fan, 56" Blade Dia., 1 Phase, 277VAC
This item is Discontinued.

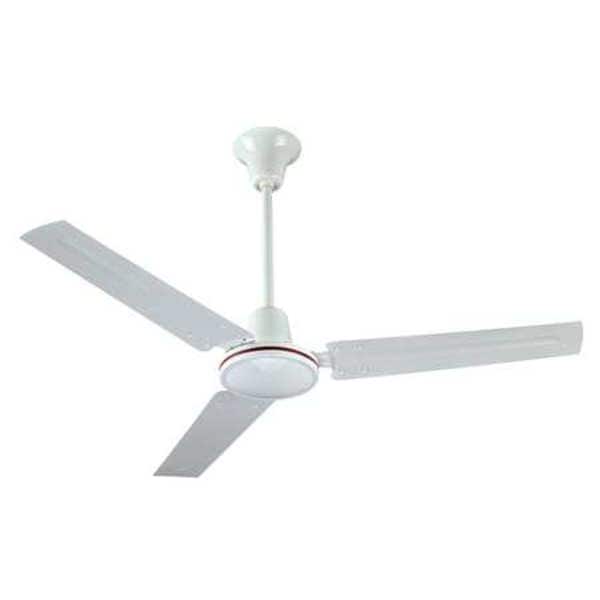

Dayton Ceiling Fan, 56" Blade Dia., 1 Phase, 277VAC 5NPZ7

Ceiling Fan, 56" Blade Dia., 1 Phase, 277VAC (Discontinued)

  • Mfr # 5NPZ7
  • Zoro # G1766143
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5NPZ7
Zoro #
G1766143
UPC #
190735347867
Country of Origin
China

Dimensions

Blade Dia.
56"
Max. Mounting Height
45 ft
Mounting Height
10 to 45 ft.
Down Rod Outside Dia.
7/8 in
Min. Mounting Height
10 ft
Blade Diameter
56 in

Details

Fan Blade Color
White
Fan Housing Material
Steel
Housing Finish
White Painted Steel
Number of Blades
3
Reversible
Yes
Speed Controllable - Fans
Yes
Number of Speeds
1
Voltage
277V AC
Phase
1
Hz
60/50
RPM @ 60 Hz
320
Amps @ 60 Hz
0.36
Standards
CSA/CUS
Amps @ 50 Hz
0.23
Fan Watts
85
RPM @ 50 Hz
286
Blade Material - Fans
Steel
Bearings
Permanently Lubricated Ball
Speed Controllable
Yes
RPM
275
Item
Ceiling Fan
Full Load Watts
85
Fan Voltage
277VAC
Housing Color - Fans
White
Mount Type
Stem
Fan Item
Ceiling Fan
Housing Material - Fans
Steel
CFM @ 60 Hz
28,000
Housing Finish - Fans
Painted
CFM @ 50 Hz
23,800
Includes
J Hook, Safety Hook, Fastning Hardware and 24 in Downnrod
Full Load Amps
0.36
Max. Ambient Temp.
105 Degrees F
Blade Finish
White, Steel
Watts @ 60 Hz
85
Motor
Thermally Protected Permanent Split Capacitor
High CFM
28,000
Watts @ 50 Hz
72
Input Volts AC @ 60/50 Hz
277
Air Flow
28,000 cfm
Type
Industrial, Single Speed Reversible Stem Mount

Description

Ceiling Fan, 56 in Blade Diameter, 277V AC Voltage, 85 Fan Watts, Phase 1, 28,000 cfm, 275 RPM, Max. Mounting Height 45 ft, Min. Mounting Height 10 ft, Number of Speeds 1, Blade Finish White, Steel, Fan Housing Color White, Housing Finish White Painted Steel, Fan Blade Color White, Number of Blades 3, Speed Controllable - Fans Yes, 0.36 Amps, Bearing Type Permanently Lubricated Ball, 60/50 Hz, Max. Ambient Temp. 105 Degrees F, Light Kit None, Reversible Yes, Mount Type Stem
