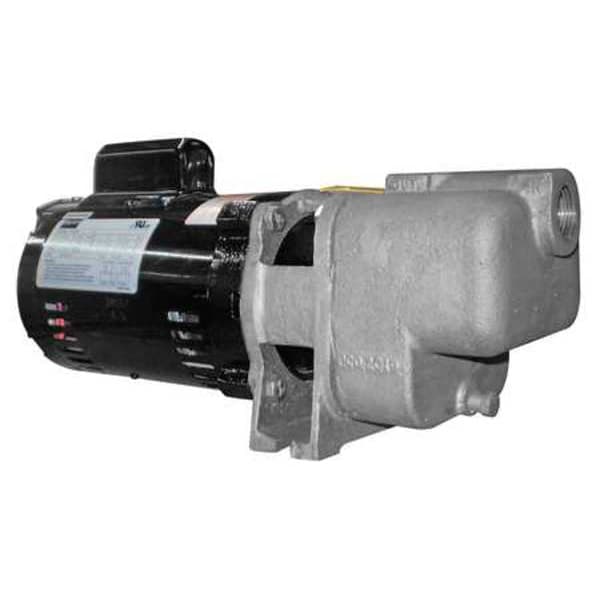

Centrifugal Pump, 1/3 hp, 115/230V AC, 1 Phase, 41 ft Max Head

  • Mfr # 5GUP0
  • Zoro # G0649345
product price:
$
988.99
/ea
Free Shipping & Returns

Key Features

Item - Self Priming Pumps
Self Priming Centrifugal Pump
HP - Pumps
1/3 hp
Inlet
1 in NPT
Outlet
1 in NPT
Voltage - Pumps
115V AC, 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5GUP0
Zoro #
G0649345
UPC #
190735344040
Country of Origin
India

Dimensions

Outlet Size - Pumps
1 in NPT
Max. Dia. Solids - Pumps
1/8 in
Inlet Size - Pumps
1 in NPT
Width
5 3/8 in
Height
8 15/16 in
Manufacturers Warranty Length
1 yr
Length
15.5 in
Max. Dia. Solids
1/8"
Overall Width
5.6 in
Overall Length
15.5 in
Overall Height
8 in
Compatible Intake Pipe Size
1 in
Solid Diameter (Maximum)
0.13 in
Compatible Discharge Pipe Size
1 in
Shaft Outer Diameter
5/8 in
Discharge Diameter
1 in
Motor Frame Size
56J
Inlet Diameter
1 in
Impeller Diameter
3 3/8 in
Manufacturer Warranty Length
1 yr
Wire Rope Length
15.5 in

Details

Item
Centrifugal Pump
Item - Self Priming Pumps
Self Priming Centrifugal Pump
HP - Pumps
1/3 hp
Inlet
1 in NPT
Outlet
1 in NPT
Voltage - Pumps
115V AC, 230V AC
Wetted Materials
Carbon, Ceramic, Stainless Steel, Viton
Phase - Pumps
1
HP
1/3
Max. Head - Pumps
41 ft
Voltage
115V, 230V
Volute Material
316 Stainless Steel
Best Efficiency Range GPM @ Head
18 to 25 gpm @ 35 to 32 ft
Seal Material
Carbon, Ceramic, Viton
Suction Lift
7 ft.
Motor RPM
3,450 RPM
Motor Enclosure - Pumps
Open Dripproof
Max. Pressure - Pumps
17 psi
Housing Material - Pumps
316 Stainless Steel
Max. Temp - Pumps
200 Degrees F
Suction Lift - Pumps
7 ft
Duty - Pumps
Continuous
Max. Head
41 ft.
GPM of Water @ 30 Ft. of Head
27
GPM of Water @ 10 Ft. of Head
43
Port Rotation - Pumps
No
Self-Priming
Yes
Motor Enclosure
Open Drip Proof
Motor Design
Capacitor-Start
GPM of Water @ 15 Ft. of Head
40
Impeller Material
Stainless Steel
Impeller Type
Semi Open
Max. Pressure
17.7 psi
Frame
56J
Agency Compliance
c UL us
Max. Specific Gravity
1.0
Max. Case Pressure
165 psi
Hz
60 Hz
Port Rotation
No
Includes
Manual
GPM of Water @ 40 Ft. of Head
6
Duty
Continuous
GPM of Water @ 20 Ft. of Head
36
Inlet Pressure
100 psi
Motor Type
Capacitor-Start
Bearing Type
Ball
Amps
7.5/3.8
Phase
Single
Max. Liquid Temp.
200 Degrees F
Housing Material
Stainless steel
Standards
UL Recognized Motor
Shaft Material
Stainless Steel
Seal Type
Mechanical
Specific Gravity (Maximum)
1
Nameplate Voltage
115/230V AC
Maximum Flow Rate
43 gpm
Compatible with Media Type
Non-Flammable Liquids
Motor Frame Designation
56J
Flow Rate @ 10 ft of Head (Maximum)
43 gpm
Pump Housing Material
Stainless Steel
Suction Lift (Maximum)
7 ft
Flow Rate @ 20 ft of Head (Maximum)
36 gpm
Horsepower
1/3 hp
For Use With Potable Systems
No
Maximum Feet of Head
41 ft
Minimum Flow Rate
6 gpm
Intake Type
NPT
Duty Cycle
Continuous
Minimum Media Temperature
40 Degrees F
Impeller Design
Semi-Open
Frequency
60 Hz
Flow Rate @ 40 ft of Head (Maximum)
6 gpm
Feet of Head (Minimum)
10 ft
Flow Rate @ 30 ft of Head (Maximum)
27 gpm
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Flow Rate @ 15 ft of Head (Maximum)
40 gpm
Best Efficiency Head
35 ft
Discharge Type
NPT
Maximum RPM
3,500 RPM
Shut Off Pressure (Maximum)
17 psi
Priming
Self-Priming
Best Efficiency Flow
25 gpm
Chemical Compatibility
Non-Flammable Liquids
Motor Speed - Maximum
3,450 RPM
Shaft Seal Material
Carbon/Ceramic, FKM
Media Temperature - Maximum
200 Degrees F
Flow Rate (Minimum)
6 gpm
Shut Off Pressure - Maximum
17 psi
Inlet Orientation
Side
Electrical Connection Type
Hardwired
Suction Lift - Maximum
7 ft
Discharge Rotation Increments
0 Degrees
Media Temperature - Minimum
40 Degrees F
Hazardous Location Class
Not Rated
Flow Rate (Maximum)
43 gpm
Shaft Seal Type
Mechanical
Flow Rate @ 10 ft of Head - Maximum
43 gpm
Number of Stages
1
Full Load Current
7.5/3.8 A
Thermal Overload Protection
Yes
Viscosity (Maximum)
100 SUS
Drive Coupling Type
No Coupling
Discharge Position
Center
Case Pressure - Maximum
100 psi
Feet of Head (Maximum)
41 ft
Mounting Orientation
Horizontal
Discharge Orientation
Top
Inlet Position
Center
Ambient Temperature - Maximum
40 Degrees C

Description

Centrifugal Pump, Phase Single, Pump Housing Material Stainless Steel, Horsepower 1/3 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 40 ft of Head (Maximum) 6 gpm, Maximum Feet of Head 41 ft, Compatible Intake Pipe Size 1 in, Intake Type NPT, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 43 gpm, Flow Rate @ 10 ft of Head (Maximum) 43 gpm, Flow Rate @ 15 ft of Head (Maximum) 40 gpm, Flow Rate @ 20 ft of Head (Maximum) 36 gpm
