Shop DAYTON

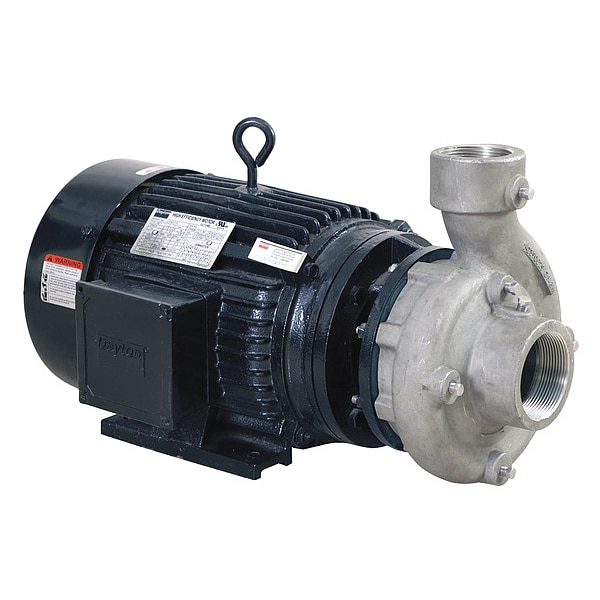

Centrifugal Pump, 15 HP, 3 Ph, 230/460VAC

  • Mfr # 55JJ62

  • Zoro # G3722845

product price:  $2,573.99
/ea
Additional $185.00 delivery surcharge applies per item.
See details

Key Features

HP - Pumps
15 hp
Voltage - Pumps
230/460V AC
Phase - Pumps
3
Housing Material - Pumps
Stainless Steel
Inlet Size - Pumps
3 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
55JJ62
Zoro #
G3722845
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
3 in NPT
Outlet Size - Pumps
2-1/2 in NPT
Compatible Intake Pipe Size
3 in
Compatible Discharge Pipe Size
2 1/2 in
Discharge Diameter
2 1/2 in
Impeller Diameter
6 3/32 in
Motor Frame Size
215JM
Shaft Outer Diameter
7/8 in
Overall Height
13.5 in
Overall Width
13.5 in
Solid Diameter (Maximum)
0.13 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
3 in
Overall Length
24.1 in
Wire Rope Length
24.1 in

Details

HP - Pumps
15 hp
Voltage - Pumps
230/460V AC
Phase - Pumps
3
Housing Material - Pumps
Stainless Steel
Max. Pressure - Pumps
60 psi
Max. Head
140 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Amps
42.2/21.1
Motor Enclosure
Totally Enclosed Fan Cooled
Item
Centrifugal Pump
Frame
215JM
Best Efficiency Range GPM @ Head
221 to 380 gpm @ 133 to 99 ft
Phase
Three
Discharge Pump Type
Centrifugal Pump
Flow Rate @ 100 ft of Head (Maximum)
330 gpm
Best Efficiency Head
133 ft
Pump Housing Material
Stainless Steel
Flow Rate @ 120 ft of Head (Maximum)
297 gpm
Discharge Type
NPT
Intake Type
NPT
Shut Off Pressure (Maximum)
60 psi
Maximum Feet of Head
150 ft
Best Efficiency Flow
380 gpm
Nameplate Voltage
230/460V AC
Horsepower
15 hp
Flow Rate @ 90 ft of Head (Maximum)
395 gpm
Flow Rate @ 80 ft of Head (Maximum)
412 gpm
For Use With Potable Systems
No
Full Load Current
34.6/17.3 A
Viscosity (Maximum)
100 SUS
Inlet Orientation
Side
Shut Off Pressure - Maximum
60 psi
Feet of Head (Maximum)
150 ft
Priming
Manual
Thermal Overload Protection
Yes
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Standards
UL Recognized Motor
Motor Design
Three-Phase
Mounting Orientation
Horizontal
Service Factor
1.25
Discharge Position
Center
Duty Cycle
Continuous
Discharge Rotation Increments
0 Degrees
Media Temperature - Maximum
200 Degrees F
Includes
Manual
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Flow Rate (Minimum)
297 gpm
Shaft Material
Stainless Steel
Impeller Material
Stainless Steel
Number of Stages
1
Specific Gravity (Maximum)
1
Volute Material
316 Stainless Steel
Feet of Head (Minimum)
80 ft
Flow Rate (Maximum)
412 gpm
Shaft Seal Type
Mechanical
Media Temperature - Minimum
40 Degrees F
Case Pressure - Maximum
100 psi
Shaft Seal Material
Carbon/Ceramic, FKM
Inlet Position
Center
Motor Speed - Maximum
3,450 RPM
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Chemical Compatibility
Non-Flammable Liquids
Discharge Orientation
Top
Hazardous Location Class
Not Rated
Drive Coupling Type
No Coupling
Electrical Connection Type
Hardwired
Frequency
60 Hz

Description

Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 15 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 80 ft of Head (Maximum) 412 gpm, Maximum Feet of Head 150 ft, Compatible Intake Pipe Size 3 in, Intake Type NPT, Compatible Discharge Pipe Size 2 1/2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 100 ft of Head (Maximum) 330 gpm, Flow Rate @ 120 ft of Head (Maximum) 297 gpm, Best Efficiency Head 99 to 133 ft

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
