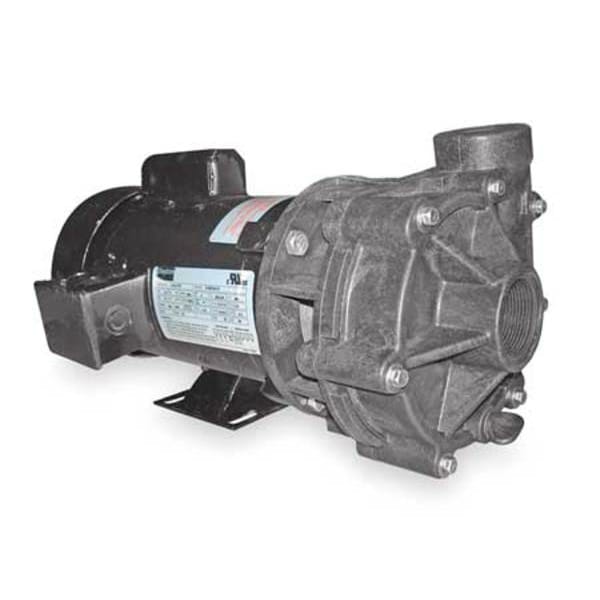

Dayton Centrifugal Pump, 3 HP, 1 Ph, 230V 2YEW6 - main

Centrifugal Pump, 3 HP, 1 Ph, 230V

  • Mfr # 2YEW6

  • Zoro # G2013112

product price: $1,462.99
/ea
Free Shipping & Returns

Key Features

HP
3 hp
Housing Material
Noryl
Phase
Single
Voltage
230
Max. GPM @ Head
123 gpm @ 10 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2YEW6
Zoro #
G2013112
UPC #
190735238721
Country of Origin
India

Dimensions

Length
15 7/8 in
Max. Dia. Solids
1/4 in
Manufacturers Warranty Length
1 yr
Width
7 5/8 in
Height
7 1/2 in
Overall Height
7.5 in
Overall Length
15.9 in
Overall Width
7.6 in
Solid Diameter (Maximum)
0.25 in
Intake Pipe Size
1 1/2 in
Discharge Pipe Size
1 1/2 in
Shaft Outer Diameter
5/8 in

Details

HP
3 hp
Item
Chemical Resistant Centrifugal Pump
Housing Material
Noryl
Phase
Single
Voltage
230
Max. GPM @ Head
123 gpm @ 10 ft
Max. Head
95 ft
Inlet
1-1/2 in NPT
Best Efficiency GPM @ Head
80 gpm @ 60 ft
Outlet
1-1/2 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
GPM of Water @ 25 Ft. of Head
110
Volute Material
Noryl
NEMA/IEC Frame
56J
Max. Specific Gravity
1.0
GPM of Water @ 50 Ft. of Head
86
GPM of Water @ 40 Ft. of Head
97
Seal Type
Mechanical
Impeller Type
Closed
GPM of Water @ 60 Ft. of Head
76
Impeller Material
Noryl
Wetted Materials
Carbon, Ceramic, Noryl, Viton
Port Rotation
None
Shaft Material
Stainless Steel
Motor RPM
3,450 RPM
Service Factor
1
GPM of Water @ 15 Ft. of Head
119
GPM of Water @ 20 Ft. of Head
115
Duty
Continuous
Best Efficiency Range GPM @ Head
48 to 106 gpm @ 80 to 30 ft
GPM of Water @ 70 Ft. of Head
63
Max. Liquid Temp.
180 Degrees F
Max. Case Pressure
100 psi
Includes
Manual
Drain Plug
Yes
Screw Material
Stainless Steel
Min. GPM @ Head
48 gpm @ 80 ft
GPM of Water @ 30 Ft. of Head
106
GPM of Water @ 80 Ft. of Head
48
Application
Aggressive Liquid Applications, and Other General Purpose Pumping, Booster Service, Irrigation, Jockey Pump Service, Moderate Flow at Moderate Head Pressure, Spraying Systems, Transfer of Non-Flammable Liquids, Water Circulation
Seal Material
Carbon, Ceramic, Noryl, Viton
Inlet Pressure
75 psi
Amps
12.5
Max. Fluid Viscosity
100 SUS
Agency Compliance
c UL us
Hz
60
GPM of Water @ 10 Ft. of Head
123
Bearing Type
Ball
Motor Type
Capacitor Start Capacitor Run
Standards
cULus Listed
Flow Rate @ 80 ft of Head (Maximum)
48 gpm
Flow Rate @ 25 ft of Head (Maximum)
110 gpm
Motor Speed (Maximum)
3,450 RPM
Duty Cycle
Continuous
Case Pressure (Maximum)
100 psi
Viscosity (Maximum)
100 SUS
Flow Rate @ 40 ft of Head (Maximum)
97 gpm
Feet of Head (Maximum)
95 ft
Flow Rate @ 70 ft of Head (Maximum)
63 gpm
Flow Rate (Minimum)
48 gpm
Discharge Pipe Type
NPT
Nameplate Voltage
230V AC
Frequency
60 Hz
Flow Rate @ 60 ft of Head (Maximum)
76 gpm
Electrical Connection Type
Hardwired
Flow Rate @ 20 ft of Head (Maximum)
115 gpm
Flow Rate @ 15 ft of Head (Maximum)
119 gpm
Best Efficiency Flow
80 gpm
Shut Off Pressure (Maximum)
85 ft of head
Impeller Design
Closed
Media Temperature (Maximum)
180 Degrees F
Ambient Temperature (Maximum)
104 Degrees F
Intake Pipe Type
NPT
Flow Rate @ 10 ft of Head (Maximum)
123 gpm
Compatible Motor Frame
56J NEMA
Best Efficiency Head
60 ft
Priming
Manual
Specific Gravity (Maximum)
1
Flow Rate (Maximum)
123 gpm
Flow Rate @ 30 ft of Head (Maximum)
106 gpm
Current
12.5 A
Discharge Rotation
None
Horsepower (Maximum)
3 hp
For Use With Potable Systems
No
Wetted Material
Carbon, Ceramic, Noryl, Viton

Description

Centrifugal Pump, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 95 ft, Flow Rate (Maximum) 123 gpm, Horsepower (Maximum) 3 hp, Housing Material Noryl, Impeller Design Closed, Impeller Material Noryl, Intake Pipe Size 1 1/2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 180 Degrees F, Phase Single, Shut Off Pressure (Maximum) 85 ft of head, Viscosity (Maximum) 100 SUS, Flow Rate @ 10 ft of Head (Maximum) 123 gpm, Flow Rate @ 15 ft of Head (Maximum) 119 gpm
