- Item

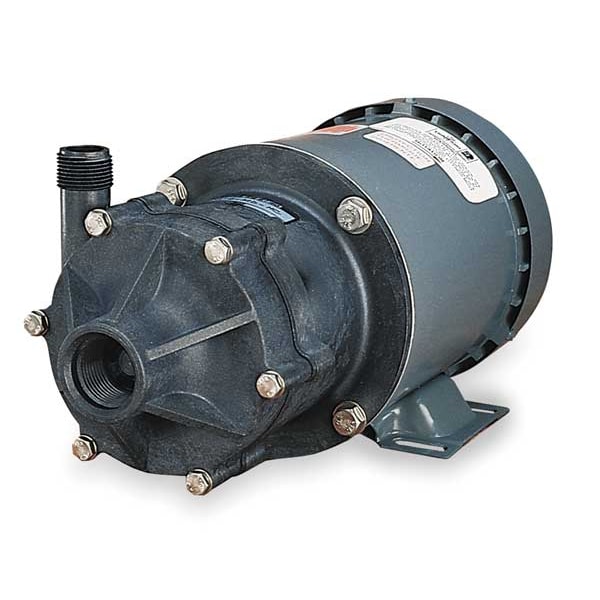

- Magnetic Drive Pump
- HP
- 1/2 hp
- Voltage
- 115/230
- Inlet
- 1 in FPT
- Outlet
- 3/4 in MPT
- Max. Head
- 51 ft
- Operating Pressure
- 22.0 psi
- Housing Material
- Glass-Filled Polyphenylene
- Impeller Material
- Carbon/Polyphenylene
- GPM of Water @ 9 Ft. of Head
- 36.2 gpm
- Motor Type
- Permanent Split Capacitor
- GPM of Water @ 18 Ft. of Head
- 33.1 gpm
- Mounting
- Horizontal
- Gasket Material
- FKM
- Bearing Type
- Thrust
- Max. Viscosity
- 100 SSU
- GPM of Water @ 50 Ft. of Head
- 2 gpm
- GPM of Water @ 40 Ft. of Head
- 21.6 gpm
- Temp. @ 10 psig
- 175 Degrees F
- Application
- For Highly Corrosive Chemicals, Eliminates Seal-caused Friction Loss, Wear, Contamination and Leakage
- Temp. @ 30 psig
- 165 Degrees F
- Full Load Amps
- 11.60/9.40 A
- Motor Enclosure
- Totally Enclosed Fan Cooled
- GPM of Water @ 24 Ft. of Head
- 30.5 gpm
- GPM of Water @ 6 Ft. of Head
- 38 gpm
- Temp. @ 0 psig
- 180 Degrees F
- Design
- Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
- Series
- MD-HC
- Temp. @ 20 psig
- 170 Degrees F
- GPM of Water @ 15 Ft. of Head
- 34 gpm
- Max. Specific Gravity
- 1.1
- Intake Pipe Type
- FNPT
- Phase
- Single
- Viscosity (Maximum)
- 100 SUS
- Full Load Current
- 9.4 A
- Ambient Temperature (Maximum)
- 77 Degrees F
- Motor Mounting Type
- Horizontal
- Feet of Head (Maximum)
- 51 ft
- Discharge Pipe Type
- NPT
- Flow Rate @ 15 ft of Head (Maximum)
- 34 gpm
- Flow Rate @ 9 ft of Head (Maximum)
- 36.2 gpm
- Flow Rate @ 6 ft of Head (Maximum)
- 38 gpm
- Horsepower (Maximum)
- 1/2 hp
- Flow Rate @ 18 ft of Head (Maximum)
- 32 gpm
- Media Temperature (Maximum)
- 180 Degrees F
- Flow Rate @ 24 ft of Head (Maximum)
- 29 gpm
- Nameplate Voltage
- 115/230V AC
- Specific Gravity (Maximum)
- 1.1
- Operating Pressure (Maximum)
- 22 psi
- Flow Rate @ 50 ft of Head (Maximum)
- 2 gpm
- Flow Rate @ 40 ft of Head (Maximum)
- 21.7 gpm
- Frequency
- 60 Hz
- Shut Off Pressure - Maximum
- 22.1 psi
- Ambient Temperature - Minimum
- 32 Degrees F
- Hazardous Location Class
- Not Rated
- Inlet Standard
- FNPT
- Drive Coupling Type
- Magnetic Coupling
- Shaft Seal Type
- Sealless
- Ambient Temperature - Maximum
- 77 Degrees F
- Motor Design
- Permanent Split Capacitor
- Priming
- Manual
- Pumping Application
- Chemical Transfer
- Pump Design
- End Suction
- Number of Stages
- 1
- Best Efficiency Head
- 40 ft
- Pump Drive Configuration
- Close-Coupled
- Pump Mounting Style
- Base-Mounted
- Case Pressure - Maximum
- 15.54 psi
- Chemical Compatibility
Acetylene,Acid,Alcohol,Aluminum Chloride,Aluminum Chloride 20%,Aluminum Sulfate,Ammonium Chloride,Ammonium Hydroxide,Antifreeze,Barium Chloride,Barium Hydroxide,Barium Sulfate,Benzene,Borax,Butadiene,Butane,Butylene,Calcium Chloride,Calcium Sulfate,Carbon Disulfide,Chlorobenzene,Copper Cyanide,Copper Sulfate 5%,Cyclohexane,Diesel Fuel,Distilled,Ethyl Chloride,Ethylene Chloride,Ethylene Glycol,Ferric Chloride,Ferrous Chloride,Ferrous Sulfate,Formic Acid,Fuel Oil,Gasoline,Heptane,Hexane,Jet Fuel,Kerosene,Lactic Acid,Lubricants,Magnesium Hydroxide,Magnesium Sulfate,Mine,Naphtha,Naphthalene,Cotton Seed Oil,Mineral Oil,Perchloroethylene,Plating Solutions,Potassium Bicarbonate,Potassium Carbonate,Potassium Chlorate,Potassium Chloride,Potassium Dichromate,Potassium Permanganate,Potassium Sulfate,Salt,Soap,Sodium Aluminate,Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Carbonate,Sodium Chlorate,Sodium Chloride,Sodium Chromate,Sodium Cyanide,Sodium Sulfate,Sodium Sulfide,Sodium Thiosulphate,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 1% to 10%,Tomato Juice,Turpentine,Vinegar,Water,Xylene,Zinc Chloride,Zinc Sulfate
- Media Temperature - Maximum
- 180 Degrees F
- Media Temperature - Minimum
- 32 Degrees F
- Best Efficiency Flow
- 24 gpm
- Flow Rate (Maximum)
- 38 gpm
- Mounting Orientation
- Horizontal
