  9. Centrifugal Pump, 3 HP, 3 Ph, 208-230/460V

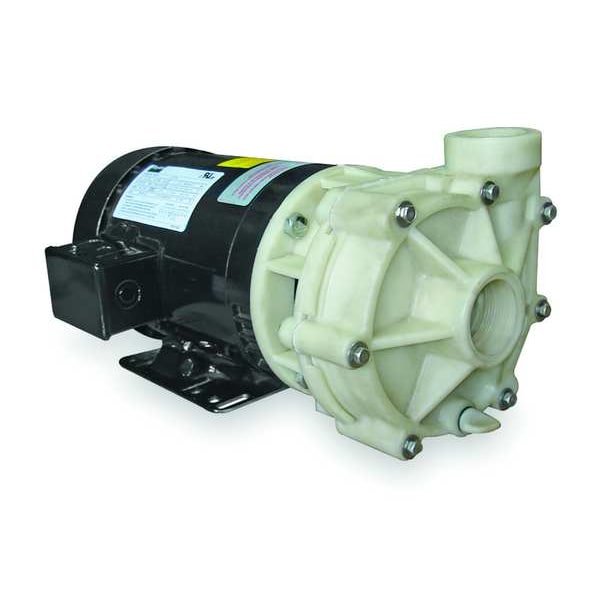

Dayton Centrifugal Pump, 3 HP, 3 Ph, 208-230/460V 2YEU5 - main

Centrifugal Pump, 3 HP, 3 Ph, 208-230/460V

  • Mfr # 2YEU5

  • Zoro # G2022377

product price: $900.99
/ea
Free Shipping & Returns

Key Features

HP
3 hp
Housing Material
Polypropylene
Phase
Three
Voltage
230/460
Max. GPM @ Head
123 gpm @ 10 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2YEU5
Zoro #
G2022377
UPC #
190735238530
Country of Origin
India

Dimensions

Width
10 in
Length
18 1/8 in
Manufacturers Warranty Length
1 yr
Height
7 1/2 in
Max. Dia. Solids
1/4 in
Overall Height
7.5 in
Overall Length
18.1 in
Overall Width
10 in
Intake Pipe Size
1 1/2 in
Solid Diameter (Maximum)
0.25 in
Discharge Pipe Size
1 1/2 in
Shaft Outer Diameter
5/8 in

Details

Item
Chemical Resistant Centrifugal Pump
HP
3 hp
Housing Material
Polypropylene
Phase
Three
Voltage
230/460
Max. GPM @ Head
123 gpm @ 10 ft
Max. Head
95 ft
Best Efficiency GPM @ Head
80 gpm @ 60 ft
Inlet
1-1/2 in NPT
Outlet
1-1/2 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Application
Aggressive Liquid Applications, and Other General Purpose Pumping, Booster Service, Irrigation, Jockey Pump Service, Moderate Flow at Moderate Head Pressure, Spraying Systems, Transfer of Non-Flammable Liquids, Water Circulation
Motor RPM
3,450 RPM
Wetted Materials
Buna-N, Carbon, Ceramic, Polypropylene, Stainless Steel
Seal Type
Mechanical
GPM of Water @ 20 Ft. of Head
115
GPM of Water @ 15 Ft. of Head
119
Shaft Material
Stainless Steel
Max. Specific Gravity
1.0
GPM of Water @ 50 Ft. of Head
86
Volute Material
Polypropylene
Port Rotation
None
Max. Liquid Temp.
140 Degrees F
Max. Fluid Viscosity
100 SUS
Impeller Material
Polypropylene
GPM of Water @ 70 Ft. of Head
63
Inlet Pressure
75 psi
Max. Case Pressure
100 psi
GPM of Water @ 40 Ft. of Head
97
Screw Material
Stainless Steel
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
GPM of Water @ 10 Ft. of Head
123
GPM of Water @ 30 Ft. of Head
106
Amps
7.2/3.6
Best Efficiency Range GPM @ Head
48 to 106 gpm @ 80 to 30 ft
Includes
Manual
GPM of Water @ 25 Ft. of Head
110
NEMA/IEC Frame
56J
Agency Compliance
c UL us
GPM of Water @ 80 Ft. of Head
48
Duty
Continuous
Hz
60
Impeller Type
Closed
Drain Plug
Yes
Service Factor
1.15
GPM of Water @ 60 Ft. of Head
76
Bearing Type
Ball
Min. GPM @ Head
48 gpm @ 80 ft
Standards
cULus Listed
Frequency
60 Hz
Flow Rate @ 15 ft of Head (Maximum)
119 gpm
Nameplate Voltage
230/460V AC
Media Temperature (Maximum)
140 Degrees F
Flow Rate @ 30 ft of Head (Maximum)
106 gpm
Flow Rate @ 40 ft of Head (Maximum)
97 gpm
Wetted Material
Buna-N, Carbon, Ceramic, Polypropylene, Stainless Steel
Flow Rate (Maximum)
123 gpm
Feet of Head (Maximum)
95 ft
Shut Off Pressure (Maximum)
85 ft of head
Impeller Design
Closed
Best Efficiency Head
60 ft
Ambient Temperature (Maximum)
104 Degrees F
Current
7.2 or 3.6 A
Intake Pipe Type
NPT
Flow Rate @ 60 ft of Head (Maximum)
76 gpm
Flow Rate @ 10 ft of Head (Maximum)
123 gpm
Discharge Pipe Type
NPT
Flow Rate @ 70 ft of Head (Maximum)
63 gpm
Horsepower (Maximum)
3 hp
Flow Rate @ 80 ft of Head (Maximum)
48 gpm
Discharge Rotation
None
Compatible Motor Frame
56J NEMA
Best Efficiency Flow
80 gpm
Priming
Manual
Electrical Connection Type
Hardwired
Specific Gravity (Maximum)
1
Duty Cycle
Continuous
Flow Rate @ 20 ft of Head (Maximum)
115 gpm
Flow Rate @ 25 ft of Head (Maximum)
110 gpm
Viscosity (Maximum)
100 SUS
Case Pressure (Maximum)
100 psi
Flow Rate (Minimum)
48 gpm
For Use With Potable Systems
No
Motor Speed (Maximum)
3,450 RPM

Description

Centrifugal Pump, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 95 ft, Flow Rate (Maximum) 123 gpm, Horsepower (Maximum) 3 hp, Housing Material Polypropylene, Impeller Design Closed, Impeller Material Polypropylene, Intake Pipe Size 1 1/2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 140 Degrees F, Phase Three, Shut Off Pressure (Maximum) 85 ft of head, Viscosity (Maximum) 100 SUS, Flow Rate @ 10 ft of Head (Maximum) 123 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
