MFR # 581031
Zoro # G1027092
UPC # 010121819313
Country of Origin Mexico

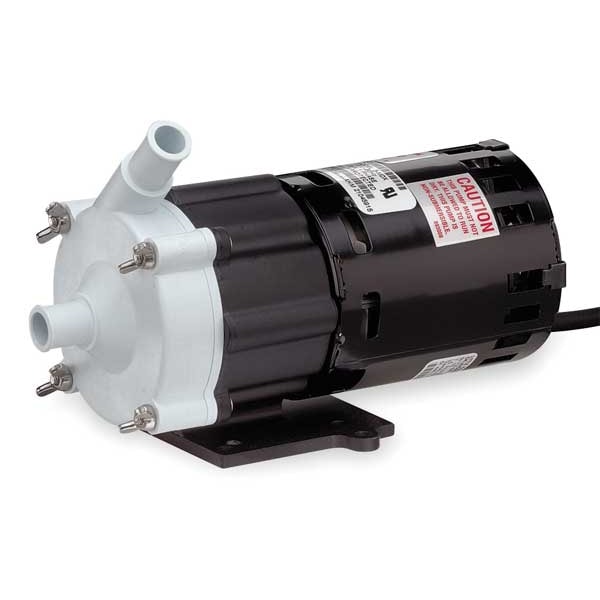

Item Magnetic Drive Pump
HP 1/25 hp
Voltage 115V
Inlet 5/8 in OD
Outlet 5/8 in OD
Max. Head 19 ft
Operating Pressure 8.2 psi
Housing Material Glass-Filled Polypropylene
Max. Viscosity 100 SSU
Temp. @ 30 psig 70 Degrees F
GPM of Water @ 6 Ft. of Head 6.8 gpm
Design Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
GPM of Water @ 9 Ft. of Head 6 gpm
Cord Type 3-conductor SJO
Application For Photographic and Plating Solutions, Mild Acids, Mild Alkalis and Other Nonflammable Liquids Compatible with Pump Component Materials, Eliminates Seal-Caused Friction Loss, Wear, Contamination and Leakage
GPM of Water @ 3 Ft. of Head 7 gpm
Temp. @ 10 psig 120 Degrees F
Temp. @ 0 psig 150 Degrees F
Motor Type Shaded Pole
Gasket Material Buna-N
Temp. @ 20 psig 90 Degrees F
Impeller Material Barium Ferrite/Polypropylene
Mounting Horizontal
Series MD
Full Load Amps 1.65 A
Motor Enclosure Open Air Over
Max. Specific Gravity 1.1
Media Temperature (Maximum) 150 Degrees F
Nameplate Voltage 115V AC
Flow Rate @ 9 ft of Head (Maximum) 6 gpm
Specific Gravity (Maximum) 1.1
Full Load Current 1.65 A
Motor Mounting Type Horizontal
Discharge Pipe Type Hose
Ambient Temperature (Maximum) 77 Degrees F
Flow Rate @ 18 ft of Head (Maximum) 0.5 gpm
Intake Pipe Type Hose
Phase Single
Frequency 60 Hz
Viscosity (Maximum) 100 SUS
Horsepower (Maximum) 1/25 hp
Feet of Head (Maximum) 19 ft
Operating Pressure (Maximum) 8.2 psi
Flow Rate @ 3 ft of Head (Maximum) 7 gpm
Flow Rate @ 6 ft of Head (Maximum) 6.8 gpm
Pumping Application Chemical Transfer
Best Efficiency Head 12 ft
Case Pressure - Maximum 8.2 psi
Drive Coupling Type Magnetic Coupling
Inlet Standard Hose
Pump Design End Suction
Priming Manual
Best Efficiency Flow 5 gpm
Hazardous Location Class Not Rated Chemical Compatibility
See full list of Chemical Compatibility Acetaldehyde,Acetic Anhydride,Alcohol,Aluminum Chloride 20%,Aluminum Sulfate,Ammonia,Ammonium Hydroxide,Ammonium Nitrate,Ammonium Phosphate,Ammonium Sulfate,Amyl Alcohol,Anhydrous,Antimony Plating,Barium Carbonate,Barium Chloride,Barium Hydroxide,Barium Sulfate,Barium Sulfide,Borax,Boric Acid,Calcium Bisulfide,Calcium Bisulfite,Calcium Carbonate,Calcium Chloride,Calcium Hydroxide,Calcium Hypochlorite,Calcium Sulfate,Copper Pyrophosphate,Copper Chloride,Copper Cyanide,Copper Nitrate,Copper Sulfate,Copper Sulfate 5%,Dibasic,Magnesium Sulfate,Ferric Sulfate,Ferrous Chloride,Ferrous Sulfate,Formaldehyde 40%,Fuel Oil,Glycerin,Gold Plating,Indium Sulfamate Plating,Iron Plating,Lactic Acid,Lead Acetate,Lubricants,Magnesium Chloride,Magnesium Hydroxide,Magnesium Nitrate,Mercuric Chloride,Mercuric Cyanide,Naphtha,Nickel Chloride,Nickel Plating,Nickel Sulfate,Plating Solutions,Potassium Bicarbonate,Potassium Bromide,Potassium Carbonate,Potassium Chlorate,Potassium Chloride,Potassium Cyanide Solutions,Potassium Dichromate,Potassium Nitrate,Potassium Permanganate,Potassium Sulfate,Sea Water,Silver Plating,Soap,Sodium Bisulfate,Sodium Bisulfite,Sodium Carbonate,Sodium Chloride,Sodium Cyanide,Sodium Silicate,Sodium Sulfate,Sodium Thiosulphate,Stannic Chloride,Tribasic,Zinc Chloride,Zinc Plating,Zinc Sulfate
Flow Rate (Maximum) 7.6 gpm
Mounting Orientation Horizontal
Discharge Standard Hose
Ambient Temperature - Maximum 77 Degrees F
Pump Mounting Style Base-Mounted
Media Temperature - Minimum 32 Degrees F
Shut Off Pressure - Maximum 8.2 psi
Number of Stages 1
Shaft Seal Type Sealless
Media Temperature - Maximum 150 Degrees F
Ambient Temperature - Minimum 32 Degrees F
Pump Drive Configuration Close-Coupled
