Shop DAYTON

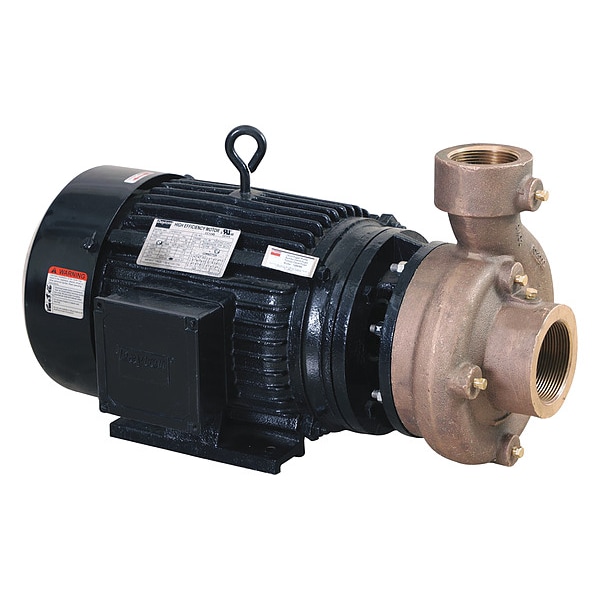

Centrifugal Pump, 3 Ph, 230/460VAC

  • Mfr # 55JJ53

  • Zoro # G3723265

product price:  $2,007.99
/ea
Additional $85.00 delivery surcharge applies per item.
See details

Key Features

HP - Pumps
5 hp
Voltage - Pumps
208 to 230/460V AC
Phase - Pumps
3
Housing Material - Pumps
Naval Bronze
Inlet Size - Pumps
2-1/2 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
55JJ53
Zoro #
G3723265
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
2-1/2 in NPT
Outlet Size - Pumps
2 in NPT
Height
12 1/4 in
Compatible Discharge Pipe Size
2 in
Overall Height
12.1 in
Compatible Intake Pipe Size
2 1/2 in
Shaft Outer Diameter
7/8 in
Discharge Diameter
2 in
Solid Diameter (Maximum)
0.13 in
Motor Frame Size
184JM
Manufacturer Warranty Length
1 yr
Impeller Diameter
133 mm
Overall Width
11.5 in
Inlet Diameter
2 1/2 in
Overall Length
21.2 in

Details

HP - Pumps
5 hp
Voltage - Pumps
208 to 230/460V AC
Phase - Pumps
3
Housing Material - Pumps
Naval Bronze
Max. Pressure - Pumps
47 psi
Max. Head
105 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Motor Enclosure
Totally Enclosed Fan Cooled
Best Efficiency Range GPM @ Head
123 to 188 gpm @ 90 to 68 ft
Amps
15.4/7.7
Phase
Three
Item
Centrifugal Pump
Frame
184JM
Discharge Pump Type
Centrifugal Pump
Pump Housing Material
Bronze
Intake Type
NPT
Discharge Type
NPT
Best Efficiency Head
90 ft
Shut Off Pressure (Maximum)
47 psi
Nameplate Voltage
230/460V AC
Horsepower
5 hp
Wetted Material
Bronze, Buna, Carbon, Ceramic, Stainless Steel
Best Efficiency Flow
188 gpm
Priming
Manual
Shut Off Pressure - Maximum
47 psi
Media Temperature - Minimum
40 Degrees F
Service Factor
1.25
Flow Rate (Maximum)
215 gpm
For Use With Potable Systems
No
Flow Rate @ 90 ft of Head (Maximum)
120 gpm
Discharge Rotation Increments
0 Degrees
Ambient Temperature - Maximum
40 Degrees C
Shaft Seal Type
Mechanical
Includes
Manual
Discharge Position
Center
Shaft Seal Material
Buna-N/Carbon/Ceramic
Shaft Material
Stainless Steel
Frequency
60 Hz
Volute Material
Bronze
Flow Rate @ 100 ft of Head (Maximum)
150 gpm
Viscosity (Maximum)
100 SUS
Motor Design
Three-Phase
Specific Gravity (Maximum)
1
Flow Rate @ 40 ft of Head (Maximum)
215 gpm
Duty Cycle
Continuous
Flow Rate @ 70 ft of Head (Maximum)
162 gpm
Flow Rate @ 80 ft of Head (Maximum)
145 gpm
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Media Temperature - Maximum
200 Degrees F
Feet of Head (Minimum)
40 ft
Impeller Material
Bronze
Motor Speed - Maximum
3,450 RPM
Drive Coupling Type
No Coupling
Flow Rate @ 50 ft of Head (Maximum)
198 gpm
Flow Rate @ 60 ft of Head (Maximum)
188 gpm
Inlet Orientation
Side
Mounting Orientation
Horizontal
Flow Rate (Minimum)
55 gpm
Full Load Current
12.6/6.3 A
Chemical Compatibility
Non-Flammable Liquids
Case Pressure - Maximum
100 psi
Number of Stages
1
Inlet Position
Center
Electrical Connection Type
Hardwired
Feet of Head (Maximum)
105 ft
Discharge Orientation
Top
Thermal Overload Protection
Yes
Hazardous Location Class
Not Rated
Standards
UL Recognized Motor
Bearing Type
Ball

Description

Centrifugal Pump, Phase Three, Pump Housing Material Bronze, Horsepower 5 hp, Nameplate Voltage 208-240/480V AC, Compatible Intake Pipe Size 2 1/2 in, Intake Type NPT, Compatible Discharge Pipe Size 2 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Best Efficiency Head 68 to 90 ft
