Shop DAYTON

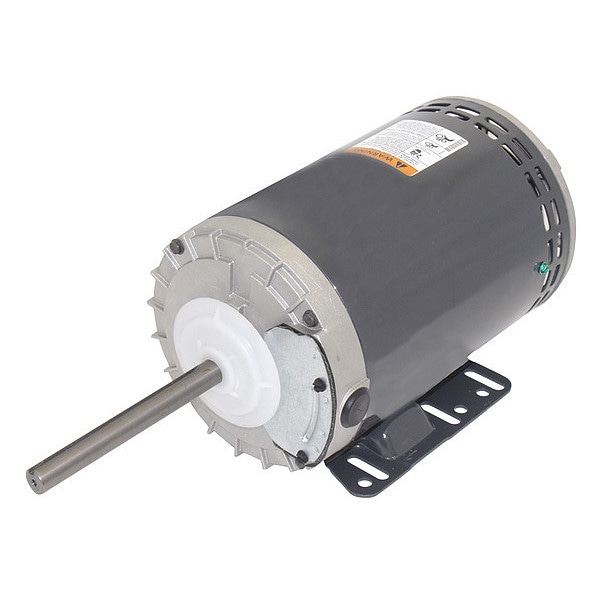

Condenser Fan Motor, 1 hp

  • Mfr # 20RK84

  • Zoro # G7459374

product price:
$
1,131.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
20RK84
Zoro #
G7459374
UPC #
190735153963
Country of Origin
Mexico
Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
850
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Full Load Amps
5.0-5.0/2.5 A
Application
Commercial Air Conditioners
Duty
Continuous
Nominal Efficiency
77.1 %
Motor Bearings
Ball
Standards
CSA 191252, UL E47479
Motor Service Factor
1
Ins. Class
F
Features
Inverter Duty Windings
Motor Shaft Design
Flat
Hz
60 Hz
Bearing Protection
Shaft Grounding Rings
Inverter Rated
Yes
Duty Cycle
Continuous
Mounting
Rigid Base
Frequency
60 Hz
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
70 Degrees C
Motor Enclosure Type
Open Air Over
Inverter Rating
Inverter Rated
Insulation Class
F
Bearing Type
Ball
Sub Application
Condenser Fan
Mounting Position
Vertical Shaft Up
Shaft Design
Flat
Full Load Current @ 60 Hz
5.0-5.0/2.5 A
Number of Speeds
1
Drive Type
Direct Drive

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.0-5.0/2.5 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
