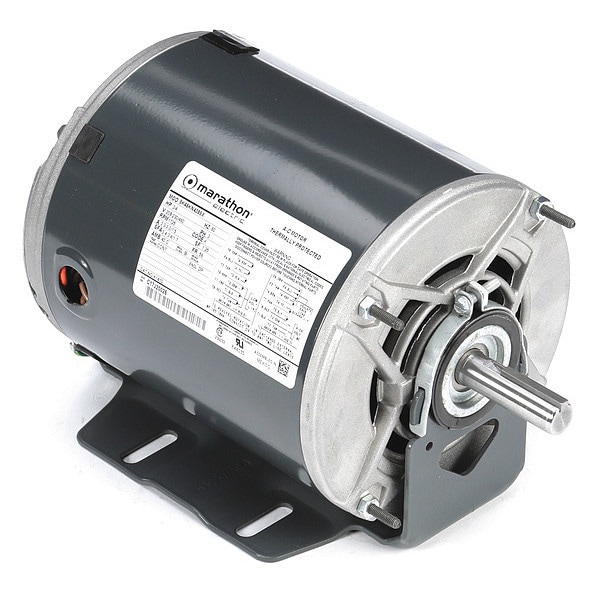

Condenser Fan Motor, 3/4 HP, 56 Frame

  • Mfr # 056T17D99082
  • Zoro # G7346810
product price:
$
489.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Motor Design
3-Phase
Phase
Three
HP
3/4
RPM Range
1,701-1,800
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T17D99082
Zoro #
G7346810
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Resilient Ring Dia.
2 1/4 in
Manufacturers Warranty Length
1 yr
Lead Length
5"
Stud Size
#10-32
Overall Length
10 7/8 in
Body Dia.
6 7/16 in
Length Less Shaft
8 7/8 in
Bolt Circle Dia.
5-15/16"
Body Diameter
6.4 in
Shaft Diameter
5/8 in
Frame Size
56HC
Resilient Ring Diameter
2 1/4 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Phase
Three
HP
3/4
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
208V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
56
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,725
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Hz
60 Hz
Motor Bearings
Ball
Motor Shaft Design
Flat
Capacitor Required
Capacitor Not Required
Ring to Ring Center
8 1/2 in
Application
Fan/Blower
Mounting Stud Pattern
4-3/16 in x 4-3/16 in
Full Load Amps
3.3-3.0,1.5 A
Motor Service Factor
1.25
Ins. Class
B
Duty
Continuous
Nominal Efficiency
74.3 %
Stud Quantity
4
Standards
CSA (MC236833), UL (E14133)
Usable @ 208V
Yes
Usable @ 200V
No
Weight
20 lb
Duty Cycle
Continuous
Motor Frame Material
Steel
Number of Speeds
1
Frequency
60 Hz
Drive Type
Belt Drive
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 60 Hz
1.25
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Insulation Class
B
Frame Material
Steel
Mounting Position
Horizontal
Full Load Current @ 60 Hz
3.3-3.0/1.5 A
Product Type
Fan and Blower Motor
Bearing Type
Ball
Shaft Design
Flat

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.3-3.0/1.5 A Full Load Amps, 56HC Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
