Shop DAYTON

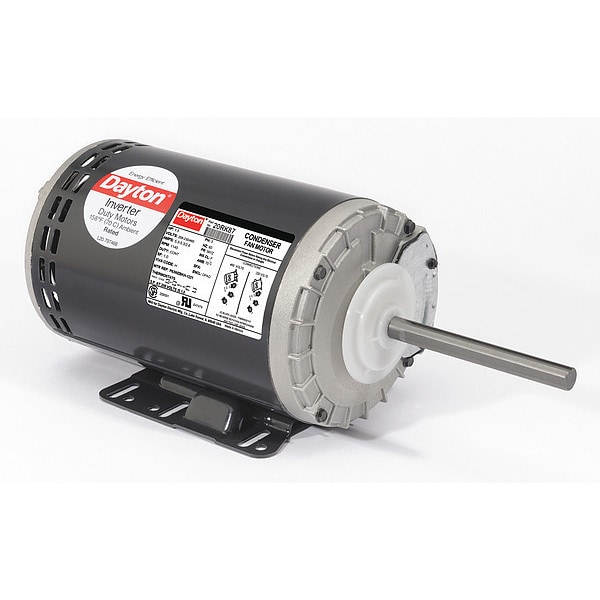

Condenser Fan Motor, 1 1/2 hp

  • Mfr # 20RK87

  • Zoro # G7484881

product price:  $947.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
20RK87
Zoro #
G7484881
UPC #
190735153994
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
5 5/8 in
Lead Length
6 in
Length Less Shaft
10 1/4 in
Body Dia.
6 1/2 in
Overall Length
16 3/4 in
Shaft Diameter
5/8 in
Wire Rope Length
16 3/4 in
Body Diameter
6.5 in
Frame Size
56YZ

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56YZ
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Mounting Position
Vertical Shaft Up
Motor Thermal Protection
T-Stat
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,140
Motor Application
HVAC/R
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Standards
CSA 191252, UL E47479
Nominal Efficiency
84 %
Full Load Amps
5.3-5.3/2.6 A
Motor Bearings
Ball
Ins. Class
F
Motor Service Factor
1
Duty
Continuous
Features
Inverter Duty Windings
Motor Shaft Design
Flat
Application
Commercial Air Conditioners
Bearing Protection
Shaft Grounding Rings
Duty Cycle
Continuous
Inverter Rated
Yes
Mounting
Rigid Base
Drive Type
Direct Drive
Insulation Class
F
Mounting Position
Vertical Shaft Up
Motor Enclosure Type
Open Air Over
Frequency
60 Hz
Ambient Temperature - Maximum
70 Degrees C
Bearing Type
Ball
Full Load Current @ 60 Hz
5.3-5.3/2.6 A
Inverter Rating
Inverter Rated
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Product Type
Condenser Fan Motor
Number of Speeds
1
Shaft Design
Flat

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.3-5.3/2.6 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Rigid Base, Inverter Rated Inverter Rated, Inverter Rating Inverter Rated
