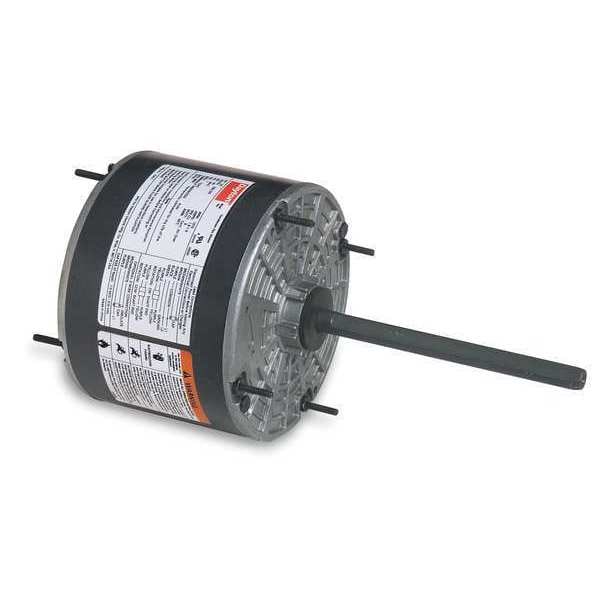

Condenser Fan Motor, 1/2 hp
Mfr # 4M062
Zoro # G2237234
product price:Â $323.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
4M062
Zoro #
G2237234
UPC #
190735329801
Country of Origin
Mexico
Dimensions
Length Less Shaft
6 7/16 in
Shaft Length
6 in
Stud Size
8-32 UNC x 3/4 in
Lead Length
30 in
Overall Length
12 7/16 in
Bolt Circle Dia.
5 1/8 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Frame Size
48YZ
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 208-230V AC, 2.9 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position Vertical Shaft Up/Shaft Down, Shaft Length 6 in
