Shop DAYTON

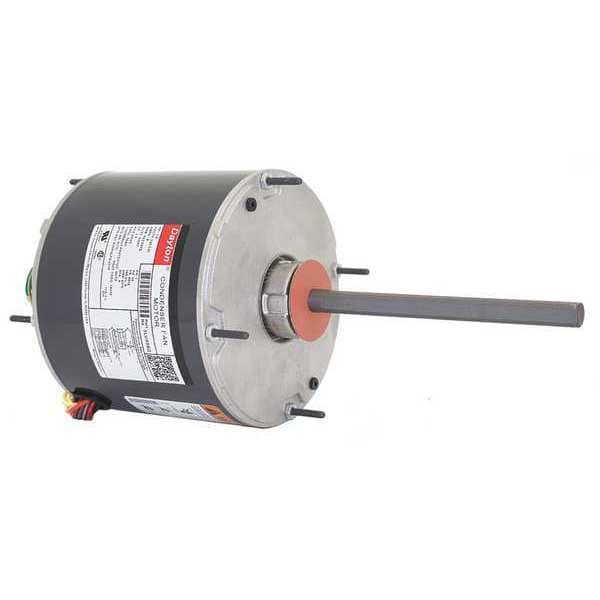

Condenser Fan Motor, 1/6 hp

  • Mfr # 3M839

  • Zoro # G1544076

product price:
$
172.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3M839
Zoro #
G1544076
UPC #
190735292440
Country of Origin
Mexico

Dimensions

Lead Length
30 in
Shaft Dia.
1/2 in
Shaft Length
6 in
Length Less Shaft
4 15/16 in
Body Dia.
5 5/8 in
Overall Length
10 3/4 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Frame Size
48YZ
Wire Rope Length
10 3/4 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/6
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Ins. Class
B
Hz
60 Hz
Standards
CSA Certified (225293), UL Recognized (E47479)
Stud Quantity
4
Motor Application
HVAC/R
Motor Service Factor
1
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Full Load Amps
1.0-1.0 A
Motor Mounting Position
All Angle
Motor Shaft Design
Double-Flat
Motor Sub Application
Condenser Fan
Nameplate RPM
1,075
Duty
Continuous
Motor Bearings
Ball
Motor Thermal Protection
Auto
Item
Condenser Fan Motor
Features
Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs
Max. Ambient Temp.
60 Degrees C
Capacitor Required
Capacitor Not Included
Duty Cycle
Continuous
Mounting
Stud
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Drive Type
Direct Drive
Ambient Temperature - Maximum
60 Degrees C
Bearing Type
Ball
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Air-Over
Mounting Position
Vertical Shaft Up/Shaft Down
Sub Application
Condenser Fan
Shaft Design
Double Flat
Product Type
Condenser Fan Motor
Full Load Current @ 60 Hz
1.0-1.0 A

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 208-230V AC, 1.0-1.0 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position Vertical Shaft Up/Shaft Down, Shaft Length 6 in
