Shop DAYTON

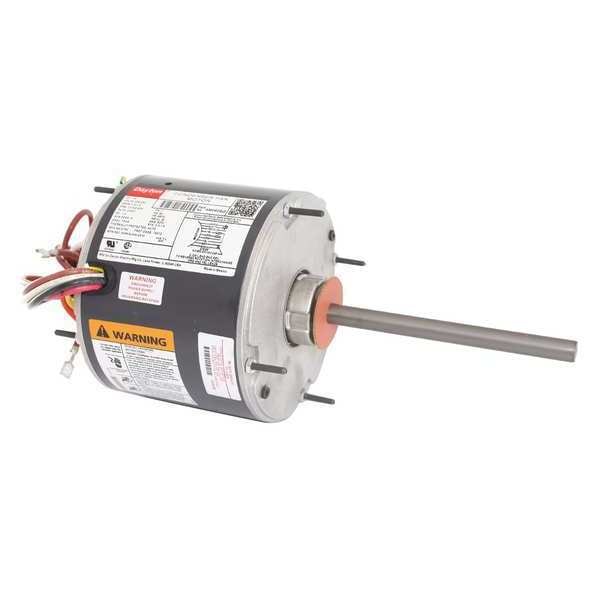

Condenser Fan Motor, 1/4 hp

  • Mfr # 4M060BG

  • Zoro # G3212693

product price:  $225.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4M060BG
Zoro #
G3212693
UPC #
190735329788
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Stud Size
8-32 UNC x 3/4 in
Overall Length
11 1/8 in
Body Dia.
5 5/8 in
Length Less Shaft
5 1/8 in
Lead Length
30 in
Shaft Length
6 in
Bolt Circle Dia.
5 1/8 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#8-32
Frame Size
48YZ
Wire Rope Length
11 1/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Item
Condenser Fan Motor
Standards
CSA Certified (258501), UL Recognized (E37403)
Capacitor Required
Capacitor Not Included
Motor Shaft Design
Double-Flat
Ins. Class
B
Stud Quantity
4
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Auto
Motor Service Factor
1
Hz
60 Hz
Features
Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs
Nameplate RPM
1,075
Motor Mounting Position
All Angle
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Application
HVAC/R
Motor Bearings
Ball
Max. Ambient Temp.
60 Degrees C
Duty
Continuous
Full Load Amps
2.0-1.9 A
Nominal Efficiency
58 %
Duty Cycle
Continuous
Mounting
Stud
Frequency
60 Hz
Shaft Design
Double Flat
Drive Type
Direct Drive
Insulation Class
B
Product Type
Condenser Fan Motor
Ambient Temperature - Maximum
60 Degrees C
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1
Sub Application
Condenser Fan
Full Load Current @ 60 Hz
2.0-1.9 A
Bearing Type
Ball
Motor Enclosure Type
Totally Enclosed Air-Over

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 208-230V AC, 2.0-1.9 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 6 in, Lead Length 30 in
