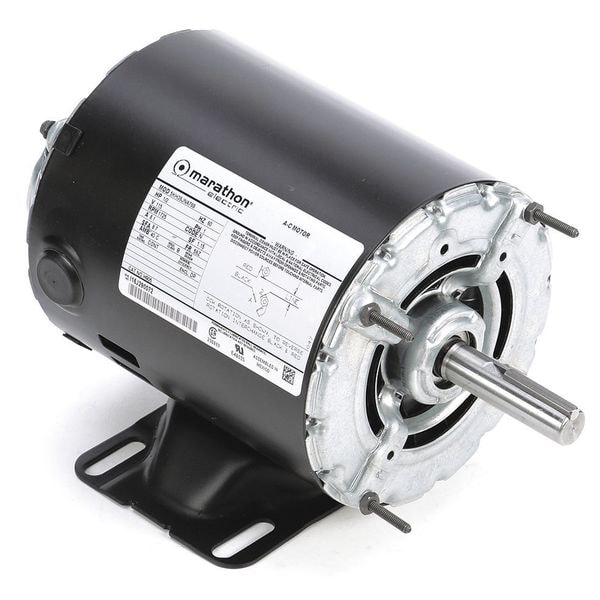

GP Motor, Split-Phase, Dripproof, 1/2 HP
Mfr # 5KH36JNA769
Zoro # G5692425
product price:Â $196.99
/ea
Free Shipping & Returns
Key Features
Motor Shaft Rotation
CW/CCW
Inverter Rated
Not Inverter Rated
Motor Frame Material
Steel
HP
1/2 hp
Standards
CSA Certified, UL Listed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5KH36JNA769
- Zoro #
- G5692425
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Length Less Shaft
- 8 5/8 in
- Overall Length
- 10 7/8 in
- Shaft Length
- 2 1/4 in
- Shaft Dia.
- 5/8 in
- Frame Size
- 56Z
- Shaft Diameter
- 5/8 in
- Wire Rope Length
- 10 7/8 in
Description
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 8.1 A, 56Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
