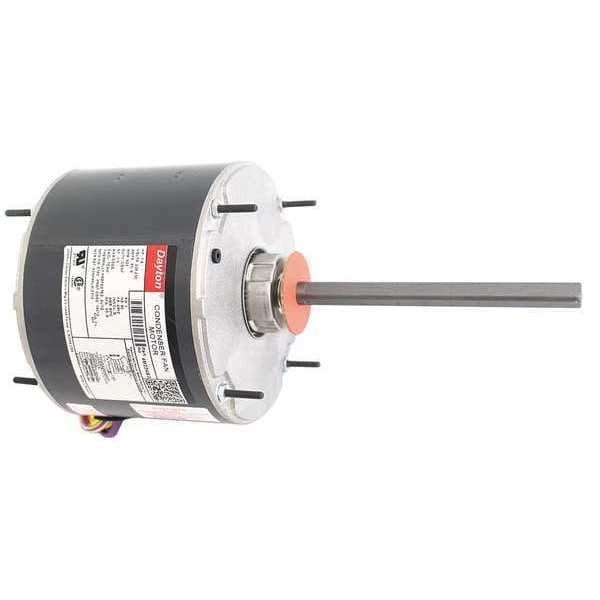

Condenser Fan Motor, 1/8 hp
Mfr # 4M224
Zoro # G2818435
product price: $207.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
0-1,000
No. of Speeds
1
Voltage
208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
4M224
Zoro #
G2818435
UPC #
190735330401
Country of Origin
Multiple
Dimensions
Stud Size
3/4 in
Overall Length
10 15/16 in
Length Less Shaft
4 15/16 in
Lead Length
36 in
Shaft Length
6 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Bolt Circle Dia.
5 1/8 in
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.95-0.80 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position Vertical Shaft Up/Shaft Down, Shaft Length 6 in
