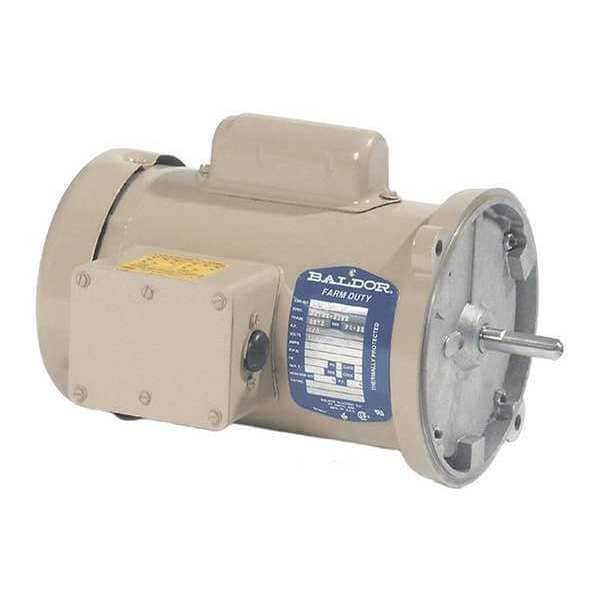

Baldor-Reliance General Purpose Farm Duty Motor, Capacitor-Start/Run, 3/4 HP, 115/230V AC, 1,725 Nameplate RPM ANFL3507M - main

General Purpose Farm Duty Motor, Capacitor-Start/Run, 3/4 HP, 115/230V AC, 1,725 Nameplate RPM

  • Mfr # ANFL3507M

  • Zoro # G8051821

product price:  $867.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
3/4
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ANFL3507M
Zoro #
G8051821
UPC #
781568122051
Country of Origin
United States

Dimensions

Overall Length
13 5/16 in
Shaft Dia.
1/2 in
Shaft Length
1 9/16 in
Length Less Shaft
11 3/4 in
Bolt Circle Dia.
7 1/4 in
Manufacturers Warranty Length
1 yr
Stud Size
None

Details

Item
General Purpose Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
3/4
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
48YZ
Motor Service Factor
1.25
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
Vertical
Motor Shaft Design
Standard
Motor Sub Application
General Purpose
Motor Shaft Rotation
Reversible
Standards
CSA, RoHS Compliant, UR
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Capacitor Required
Yes
Motor Bearings
Ball
Ins. Class
B
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Full Load Amps
4.1 A
Nominal Efficiency
74 %
Finish
Painted
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Mounting Stud Pattern
None
Usable @ 208V
Yes
Duty Cycle
Continuous
Usable @ 200V
Yes
Extended Thru-Bolts
No
HP @ 50Hz
.63
Weight
34 lb
RPM @ 50Hz
1440
Full Load Amps @ 50Hz
8.2/4.1
Voltage @ 50Hz
115/208-230V AC

Description

General Purpose Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.1 A, 48YZ Frame, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation Reversible, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Not Applicable
