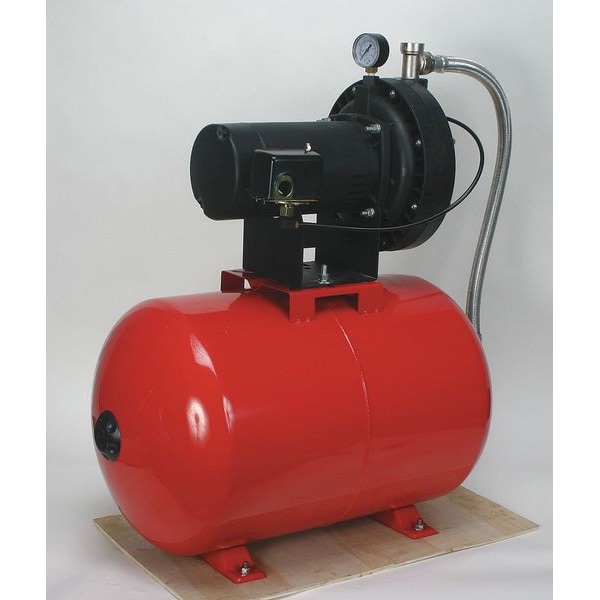

Dayton Convertible Jet Pump, Plastic, 1 HP 4HFA5 - main

Convertible Jet Pump, Plastic, 1 HP

  • Mfr # 4HFA5

  • Zoro # G3040807

product price: $1,142.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Amps
17.0/8.5
Flow Rate @ 10 Ft. Lift @ 40 PSI
18.4 gpm
Max. Suction Lift
110 ft
Includes
Pump, Tank
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4HFA5
Zoro #
G3040807
UPC #
190735325308
Country of Origin
China

Dimensions

Width (In.)
20
Length (In.)
20
Height (In.)
39
Overall Width
15 11/32 in
Overall Length
27 7/8 in
Overall Height
31 1/16 in
Inlet Dia.
1 1/4 in
Discharge Diameter
1 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
1 1/4 in

Details

HP
1 hp
Amps
17.0/8.5
Flow Rate @ 10 Ft. Lift @ 40 PSI
18.4 gpm
Max. Suction Lift
110 ft
Includes
Pump, Tank
Tank Capacity
17 gal
Inlet
1 1/4 in NPT
Discharge
1 in NPT
Tank PSI
28
Item
Convertible Jet Pump System
Tank (Gal.)
17
GPM of Water @ 30 Ft @ 30, 50 PSI
9.2 7.2
Voltage
115/230
Suction Lift (Ft.)
100
GPM of Water @ 80 Ft @ 30, 50 PSI
7.0 4.2
GPM of Water @ 60 Ft @ 30, 50 PSI
7.9 4.7
Max. Inlet Pressure (PSI)
75
GPM of Water @ 20 Ft @ 30, 50 PSI
12.2/5.4
GPM of Water @ 5 Ft @ 30, 50 PSI
20.2 10.8
Max. Case Pressure (PSI)
141
GPM of Water @ 15 Ft @ 30, 50 PSI
15.9 8.2
GPM of Water @ 10 Ft @ 30, 50 PSI
19.2/10.2
Seal Type
Mechanical
Shut Off (PSI)
66
Motor Type
Capacitor Start
GPM of Water @ 50 Ft @ 30, 50 PSI
7.9 5.0
GPM of Water @ 40 Ft @ 30, 50 PSI
8.9 6.1
Outlet
1" NPT
GPM of Water @ 70 Ft @ 30, 50 PSI
7.5/3.7
Shut Off Pressure
66 psi
Discharge Standard
NPT
Max. Inlet Pressure
75 psi
Inlet Standard
NPT
Tank Bladder Pressure
28 psi
Flow Rate @ 10 Ft. Lift @ 50 PSI
10.2 gpm
Rated Voltage
115/230V AC
Flow Rate @ 10 Ft. Lift @ 30 PSI
19.2 gpm
Standards
CSA/CUS
Application
Transfer
Pressure Switch Setting - Maximum
50 psi
Suction Lift - Maximum
110 ft
Discharge Gender
Female
Media Temperature - Minimum
5 Degrees C
Series
HWP
For Media Type
Clear Water
Power Source
Corded Electric
Shut Off Pressure - Maximum
66 psi
Priming
Self-Priming
Frequency
60 Hz
Flow Rate - Maximum
21 gpm
Product Type
Convertible Well Jet Pump System
Media Temperature - Maximum
95 Degrees F
NSF Certifications for Food and Drinking Water
NSF 61
Phase
Single
Inlet Pressure - Maximum
75 psi
Pump Technology
Centrifugal
Pressure Switch Setting - Minimum
30 psi
Full Load Current
17.0/8.5 A
Inlet Gender
Female
Horsepower
1 hp
Includes Ejector
No Ejector Included
Installation
Floor Standing

Description

Convertible Jet Pump System, Material of Construction Thermoplastic, 1 HP, Voltage 115/230, Inlet 1 1/4 In. NPT, Outlet 1 In. NPT, Amps 17.0/8.5, Tank (Gal.) 17, Tank PSI 28, GPM of Water @ 80 Ft @ 30, 50 PSI 7.0 4.2, Shut Off (PSI) 66, Max. Inlet Pressure (PSI) 75, Max. Case Pressure (PSI) 141, Motor Type Capacitor Start, Seal Type Mechanical, Suction Lift (Ft.) 100, Length (In.) 20, Width (In.) 20, Height (In.) 39
