  5. Corrosion Resistant Standard Duty Industrial Fan, Ceiling Mount, 24 in Blade Dia, 115V, 6,400 cfm

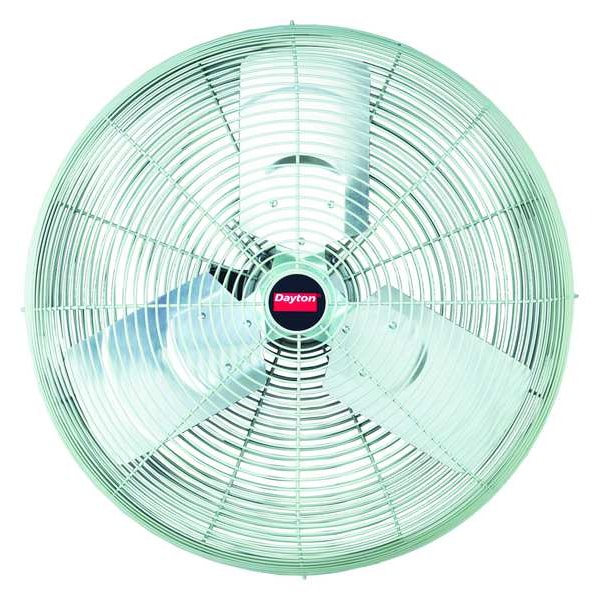

Dayton Corrosion Resistant Standard Duty Industrial Fan, Ceiling Mount, 24 in Blade Dia, 115V, 6,400 cfm 1ZCN8 - main

Corrosion Resistant Standard Duty Industrial Fan, Ceiling Mount, 24 in Blade Dia, 115V, 6,400 cfm

  • Mfr # 1ZCN8

  • Zoro # G2522782

product price:  $292.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1ZCN8
Zoro #
G2522782
UPC #
190735150641
Country of Origin
China

Dimensions

Blade Diameter
24 in
Height
31 in
Max. Depth
13-1/4 in
Outside Dia.
27 in
Width
27 in
Shaft Dia.
1/2 in
Depth
13 1/4 in
Height Adjustment
Fixed Height
Fan Cord Length
10 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V
Phase
1
Motor HP
1/4
Air Flow
6,400 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
74 dBA
Item
Industrial Fan
Fan Accessory Style
Standard
Assembled
Yes
Watts
320
Mobile/Stationary
Stationary
Includes
S Hooks and Mounting Chains
Number of Conductors
3
Fan Style
Corrosion Resistant Standard Duty
Bearing Type
Ball
Fan Mounting Location
Ceiling
Standards
cULus Listed
Max. Ambient Temp.
104 Degrees F
Motor Enclosure
Totally Enclosed Air Over
Hz
60 Hz
CFM High
6400
Air Velocity @ 10 Ft.
1,050 fpm
Air Velocity @ 40 Ft.
150 fpm
NEMA Plug Configuration
5-15P
Motor RPM
1,100 RPM
Air Velocity @ 20 Ft.
465 fpm
Environmental Applications
Industrial
CFM/Watt
49
Wire Guard Finish
Polyester Powder Coated Gray
Application
Greenhouse Cooling
Guard Material
Steel
Motor Insulation
Class B
Thermal Protection
Automatic Reset
Number of Blades
3
Motor Type
Permanent Split Capacitor
Housing Material
Steel
Fan Housing Material
Steel
Color
Gray
Amps
2.8
Wheeled Base
Stationary
Assembly Required
No
RPM
1100
Material
Steel
Motor hp
1/4 hp
NEMA plug Configuration
5-15p

Description

Mounted Fan, Blade Dia. 24 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 115V AC, 1 Phase, CFM High 6400, Air Velocity @ 20 Ft. 500 fpm, Motor HP 1/4 hp, Motor RPM 1100, Operating Amps 2.8, Fan Mounting Location Ceiling, Fan Accessory Style Standard, Fan RPM 1100, Sound Level 74 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 320 W, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 27 In., Height 27 in, Width 27 in, Max. Depth 13-1/4 In., Cord Length 10 ft.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
