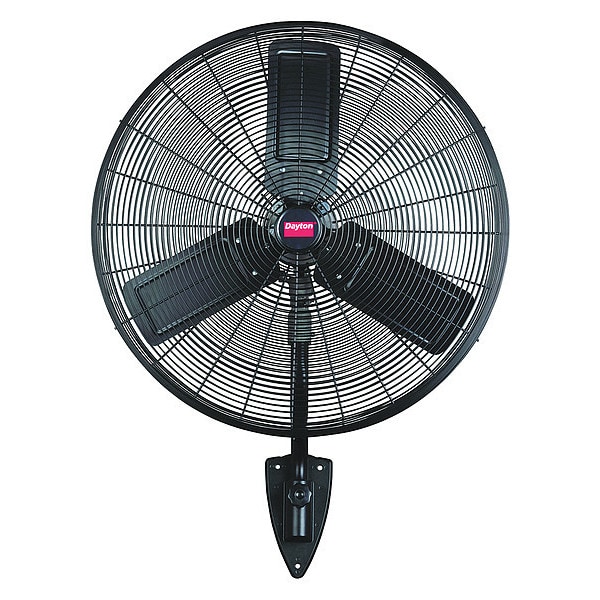

Light Duty Industrial Fan, Wall Mount, 30 in Blade Dia, 115V, 7,260/8,200 cfm, Oscillating

  • Mfr # 6ALF1

  • Zoro # G1176156

product price:  $407.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
30 in
Oscillation
Oscillating
Number of Speeds
2
Voltage
115V AC
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6ALF1
Zoro #
G1176156
UPC #
190735360262
Country of Origin
Multiple

Dimensions

Blade Diameter
30 in
Height
43 7/8 in
Max. Depth
24-1/4"
Shaft Dia.
5/8 in
Width
33 in
Depth
24 1/4 in
Height Adjustment
Fixed Height
Fan Cord Length
10 ft
Max. Mounting Height
Unrestricted

Details

Oscillation
Oscillating
Number of Speeds
2
Voltage
115V AC
Phase
1
Motor HP
1/2 hp
Air Flow
7,260/8,200 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
77 dBA
Item
Mounted Fan
CFM/Watt
18.22
CFM High
8200
Motor Enclosure
Totally Enclosed Air-Over
Fan Accessory Style
Standard
Mobile/Stationary
Stationary
Guard Material
Steel
Includes
Mounting Hardware, Secondary Safety Support Cable, Mounting Bracket
Max. Ambient Temp.
104 Degrees F
Housing Material
Steel
Fan Style
Standard
Standards
cULus
Air Velocity @ 10 Ft.
994/817 fpm
NEMA Plug Configuration
5-15P
Watts
450/369 W
Thermal Protection
Automatic Reset
Motor Type
Permanent Split Capacitor
Requires
Assembly
Motor RPM
1100/850
Fan Mounting Location
Wall
Air Velocity @ 40 Ft.
261/180 fpm
CFM Low
7260
Number of Conductors
3
Environmental Applications
Industrial
Hz
60 Hz
Wire Guard Finish
Powder Coated
Number of Blades
3
Motor Insulation
B
Air Velocity @ 20 Ft.
610/525 fpm
Assembled
No
Application
Spot Cooling and People Cooling
Bearing Type
Ball
Wheeled Base
Stationary
Color
Black
Amps
4.2/3.5
Fan Housing Material
Steel
RPM
850 RPM, 1,100 RPM
Assembly Required
Yes
Material
Steel
Motor hp
1/2 hp
NEMA plug Configuration
5-15p
Head Tilt Adjustment
125 Degrees
Environment Rating
Dry
Fan Power Source
Plug-In
High-Visibility
No
Smart Connectivity
Not Bluetooth Compatible, Not Wi-Fi Compatible
IP Rating
Not Rated
Features
AC Motor
For Location
Manufacturing Plant
Removable Base
Permanently Lubricated
Corrosion-Resistant
Yes
Bearing Protection
Double-Sealed
Guard Color
Black
Motor Design
Permanent Split Capacitor
Airflow
7,260 cfm, 8,200 cfm
Fan Shape
Basket
Sound Level - Minimum
75 dBA
Mount Type
Bracket

Description

Wall Mounted Oscillating Fan, Blade Dia. 30 in, Stationary, Oscillating, 2 Speeds, Voltage 115V AC, 1 Phase, CFM High 8200, CFM Low 7260, Air Velocity @ 20 Ft. 610/525 fpm, Motor HP 1/2 hp, Motor RPM 1100/850, Operating Amps 4.2/3.5, Fan Mounting Location Wall, Fan Accessory Style Standard, Fan RPM 1100/850, Sound Level 77 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 450/369, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Height 43 in, Width 33 in, Max. Depth 24-1/4 In.
