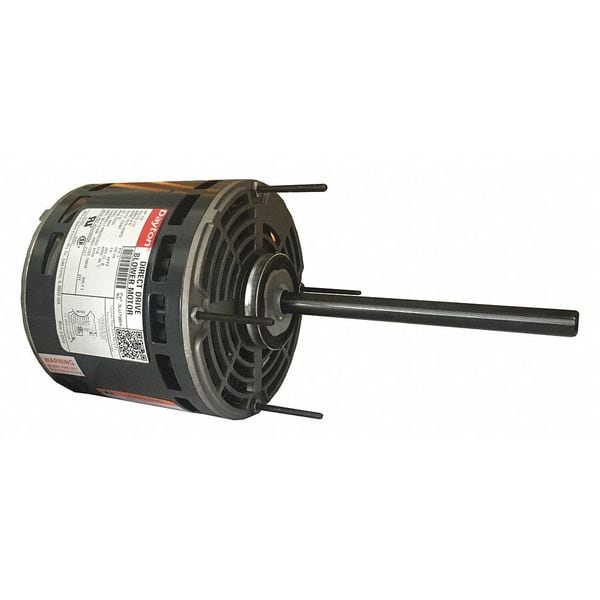

DD Blower Motor, PSC, 1/3 HP, 1075, 115, 48YZ

DAYTON| Zoro #: G1764804| Mfr #: 3LU79

$121.88 /ea

This item ships free. DetailsStandard ground shipping
Application: Blowers, Fans and Air Circulators
Full Load Amps: 6.2
HP: 1/3
Save 15%. Sign up for Z-mail.

Technical Specifications

Zoro #: G1764804 Mfr #: 3LU79
Motor Sub Application: Direct Drive Fan/BlowerItem: Direct Drive Blower Motor
Motor Enclosure Design: Open Air-OverMotor Thermal Protection: Auto
Hz: 60Phase: 1
Motor Design: Permanent Split CapacitorMotor Mounting Position: All Angle
Motor Application: HVAC/RIns. Class: B
Application: Blowers, Fans and Air CirculatorsRing to Ring Center: 5-1/2"
Frame: 48YZBody Dia.: 5-5/8"
Voltage: 115Shaft Length: 6"
Duty: ContinuousOverall Length: 11-15/16"
Capacitor Required: 2MDV6Motor Shaft Design: Flat
Motor Mounting Type: StudNameplate RPM: 1075
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240No. of Speeds: 4
HP: 1/3Motor Service Factor: 1.00
Max. Ambient Temp.: 40 Degrees CFull Load Amps: 6.2
Motor Bearings: SleeveLength Less Shaft: 5-15/16"
Motor Shaft Rotation: CW/CCWShaft Dia.: 1/2"
Country of Origin (subject to change): China

Product Description

Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/3 HP, 1075 Nameplate RPM, Voltage 115, 6.2 Full Load Amps, 60 Hz, 1 Phase, 48YZ Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 4, Mounting Stud, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8 In., Length Less Shaft 5-15/16 In., Overall Length 11-15/16 In., Shaft Dia. 1/2 In., Shaft Length 6 In.
