Shop DAYTON

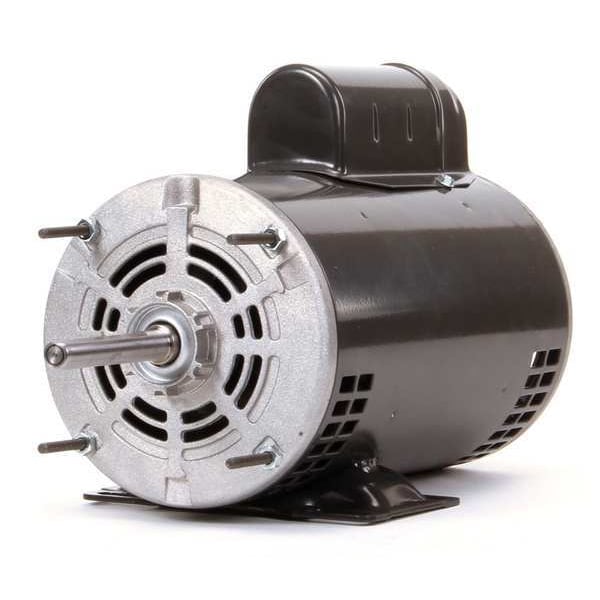

Motor, PSC, 1 HP, 1140 RPM, 115/230V, 48Z, OAO

  • Mfr # 4YU26
  • Zoro # G2566471
product price:
$
664.99
/ea
Free Shipping & Returns

Key Features

Ins. Class
B
Motor Bearings
Ball
Motor Service Factor
1
Length Less Shaft
10 13/16 in
Motor Design
Permanent Split Capacitor
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4YU26
Zoro #
G2566471
UPC #
190735339121
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 13/16 in
Shaft Length
3 in
Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Shaft Diameter
1/2 in
Frame Size
48Z
Body Diameter
5.6 in
Overall Length
13 7/8 in
Wire Rope Length
13 7/8 in
Length
13 7/8 in

Details

Ins. Class
B
Motor Bearings
Ball
Motor Service Factor
1
Motor Design
Permanent Split Capacitor
Motor Application
HVAC/R
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Full Load Amps
11.4/5.7 A
Motor Sub Application
Direct Drive
Capacitor Required
Capacitor Included
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
RPM Range
1,101-1,200
Application
Fan/Blower
Motor Shaft Rotation
CW/CCW
Voltage
115V AC, 230V AC
No. of Speeds
1
HP
1
Motor Enclosure Design
Open Air-Over
Phase
Single
Nameplate RPM
1,140
Hz
60 Hz
Duty
Continuous
Replacement For
4HZ57, 4HZ59
Max. Ambient Temp.
40 Degrees C
Frame
48Z
Motor Thermal Protection
Auto
Motor Shaft Design
Flat
Item
Fan and Blower Motor
Standards
CSA Certified, UL Recognized
Number of Shafts
1
Includes
Capacitor
Usable @ 208V
Not Usable at 208V
Stud Quantity
4
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F3
Mounting
Rigid Base
Number of Speeds
1
Full Load Current @ 60 Hz
11.4/5.7 A
Shaft Design
Flat
Frequency
60 Hz
Motor Enclosure Type
Open Air Over
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Sub Application
Ventilator
Frame Material
Steel
Product Type
Fan and Blower Motor
Bearing Type
Ball
Mounting Position
All Angle
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, 11.4/5.7 A Full Load Amps, 48Z Frame, 60 Hz Hz, Replacement For 4HZ57, 4HZ59, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
