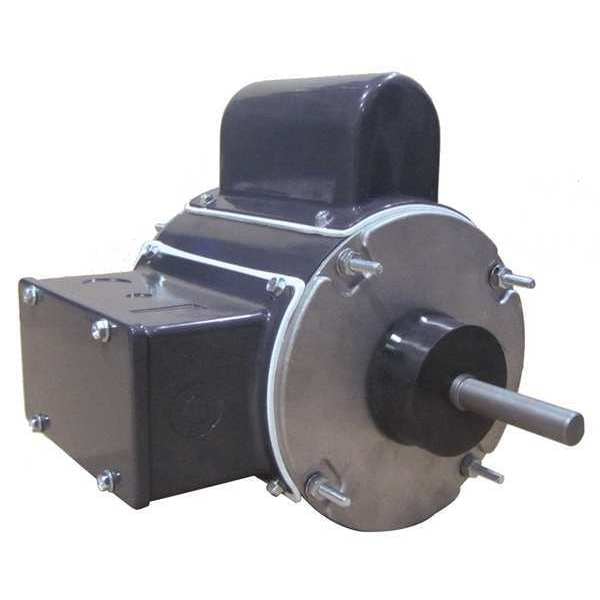

Dayton Definite Purpose HVAC Motor, 1/2 hp VED140U2909.5G - main

Definite Purpose HVAC Motor, 1/2 hp

  • Mfr # VED140U2909.5G

  • Zoro # G7368457

product price:  $368.99
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
10D970, 10D976, 10D989, 10E026, 10E046
Fits Brand
Dayton
For Use With
Grainger Item Number: 10E026, 10E046, 10D976, 10D970, 10D989
Ambient Temperature - Maximum
40 Degrees C
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VED140U2909.5G
Zoro #
G7368457
UPC #
190735957943
Country of Origin
China

Dimensions

Shaft Length
248 mm
Shaft Diameter
12 11/16 mm
Frame Size
48YZ
Bolt Circle Diameter
130 mm
Body Diameter
144 mm
Length Less Shaft
6 15/16 in

Details

For Use With Mfr. Model Number
10D970, 10D976, 10D989, 10E026, 10E046
Fits Brand
Dayton
Item
Motor
For Use With
Grainger Item Number: 10E026, 10E046, 10D976, 10D970, 10D989
Ambient Temperature - Maximum
40 Degrees C
Phase
Single
Bearing Type
Ball
Capacitor Required
Capacitor Included
Full Load Current @ 60 Hz
5.4/2.8 A
Conduit Box Location
Exterior
Insulation Class
B
Usable @ 208V
Not Usable at 208V
Compatible Manufacturer Part Number
10D970, 10D976, 10D989, 10E026, 10E046
Compatible Brand
Dayton
Frame Material
Steel
Product Type
Definite Purpose HVAC Motor
Motor Design
Permanent Split Capacitor
Drive Type
Direct Drive
Efficiency Rating
Standard Efficiency (IE1)
Manufacturers Warranty
1 yr
Usable @ 200V
Not Usable at 200V
Frequency
60 Hz
Conduit Box Position
F2
Mounting Position
Horizontal
Duty
Continuous

Description

Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,150 RPM, Voltage 115/230V AC, Full Load Amps 5.4/2.8 A, 48YZ Frame, OEM Replacement Brand Dayton, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Mounting Position Horizontal, Motor Frame Material Steel
