Shop DAYTON

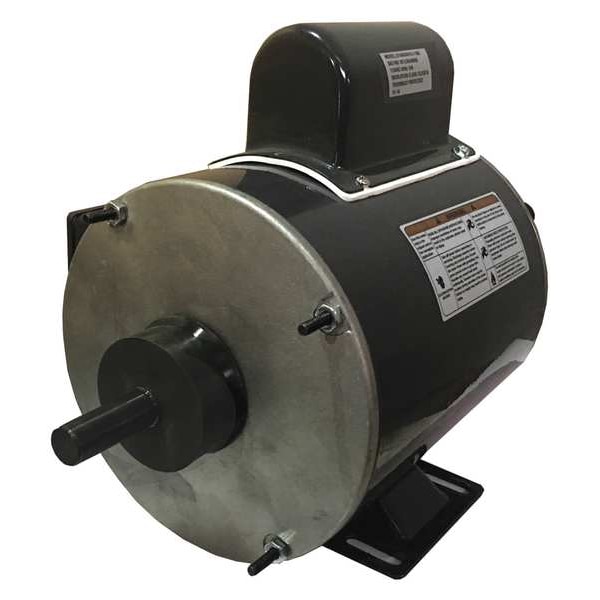

Direct Drive Blower Motor, 1 hp

  • Mfr # GGS_47824

  • Zoro # G6424069

product price:  $421.99
/ea
Free Shipping & Returns

Key Features

Capacitor Required
Capacitor Included
Motor Shaft Rotation
CWSE
Shaft Dia.
5/8 in
HP
1 hp
Body Dia.
6.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GGS_47824
Zoro #
G6424069
UPC #
190735957684
Country of Origin
China

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6.5 in
Manufacturers Warranty Length
1 yr
Overall Length
10 1/2 in
Length Less Shaft
7 1/2 in
Shaft Length
262 mm
Bolt Circle Dia.
3 5/8 in
Shaft Diameter
15 7/8 mm
Bolt Circle Diameter
157 mm
Body Diameter
170 mm
Frame Size
Non-Standard
Wire Rope Length
10 1/2 in

Details

Capacitor Required
Capacitor Included
Motor Shaft Rotation
CWSE
HP
1 hp
Replacement For
Dayton 1LXN4D
Ins. Class
B
Full Load Amps
10 A
Item
Definite Purpose HVAC Motor
Hz
60
Motor Sub Application
Direct Drive Fan/Blower
Max. Ambient Temp.
40 Degrees C
Voltage
115V AC
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Design
Permanent Split Capacitor
Motor Mounting Type
Rigid Base
Standards
UL (1004)
Voltage Compatibility
115V AC, 120V AC, 115/230V AC, 115/208-230V AC, 120/240V AC
RPM Range
1,001-1,100
Motor Application
HVAC/R
Frame
Non-Standard
No. of Speeds
1
Motor Thermal Protection
Auto
Application
Fan/Blower
Motor Shaft Design
Keyed
Phase
Single
Nameplate RPM
1,100
Number of Speeds
1
Usable @ 208V
Not Usable at 208V
Efficiency Rating
Standard Efficiency (IE1)
Duty
Continuous
Usable @ 200V
Not Usable at 200V
Mounting Position
Horizontal
Full Load Current @ 60 Hz
10 A
Ambient Temperature - Maximum
40 Degrees C
Product Type
Definite Purpose HVAC Motor
Frequency
60 Hz
Conduit Box Location
Exterior
Shaft Design
Keyed
Insulation Class
B
Bearing Type
Ball
Frame Material
Steel
Compatible Brand
Dayton
Conduit Box Position
F2
Sub Application
Fan/Blower
Drive Type
Direct Drive
Motor Enclosure Type
Totally Enclosed Air-Over
Manufacturers Warranty
1 yr

Description

Definite Purpose HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 10 A, Non-Standard Frame, Replacement For Dayton 1LXN4D, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over
