Shop DAYTON

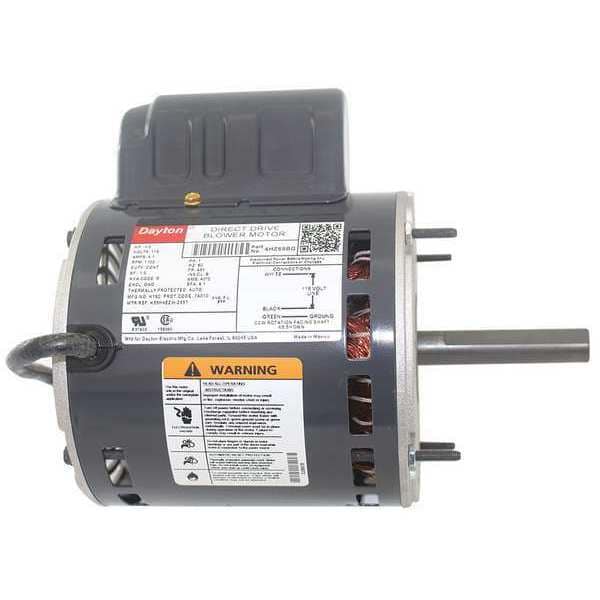

Motor, PSC, 1/3 HP, 1100 RPM, 115V, 48Y, OAO

  • Mfr # 4HZ69BG

  • Zoro # G3109504

product price:  $259.99
/ea
Free Shipping & Returns

Key Features

Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
HP
1/3
Hz
60 Hz
Shaft Length
3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4HZ69BG
Zoro #
G3109504
UPC #
190735326480
Country of Origin
Mexico

Dimensions

Shaft Length
3 in
Length Less Shaft
5 13/16 in
Shaft Dia.
5/8 in
Frame Size
48Y
Shaft Diameter
5/8 in

Details

Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
HP
1/3
Hz
60 Hz
Motor Enclosure Design
Open Air-Over
Motor Thermal Protection
Auto
Voltage
115V AC
Motor Shaft Design
Flat
Nameplate RPM
1,100
RPM Range
1,001-1,100
No. of Speeds
1
Ins. Class
B
Motor Design
Permanent Split Capacitor
Duty
Continuous
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Item
Fan and Blower Motor
Motor Mounting Position
All Angle
Phase
Single
Capacitor Required
Capacitor Included
Motor Application
HVAC/R
Application
Mfr. No. 4HZ27, 4HZ49, 4HZ51
Standards
CSA Certified, UL Recognized
Motor Service Factor
1
Motor Mounting Type
Ring/Stud
Motor Sub Application
Direct Drive
Frame
48Y
Motor Shaft Rotation
CCWSE
Full Load Amps
4.1 A
Duty Cycle
Continuous
Mounting
Stud
Number of Speeds
1
Product Type
Fan and Blower Motor
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
4.1 A
Insulation Class
B
Sub Application
Ventilator
Bearing Type
Ball
Motor Enclosure Type
Open Air Over
Shaft Design
Flat
Nameplate Service Factor @ 60 Hz
1
Mounting Position
All Angle
Frequency
60 Hz

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 1, Voltage 115V AC, 4.1 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 3 in, Shaft Dia. 5/8 in
