  9. Double Diaphragm Pump, 316 Stainless Steel, Air Operated, Hytrel

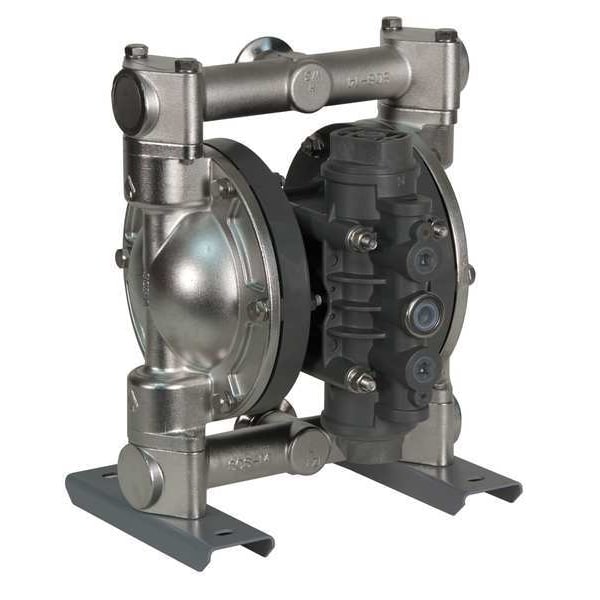

Dayton Double Diaphragm Pump, 316 Stainless Steel, Air Operated, Hytrel 22A606 - main

Double Diaphragm Pump, 316 Stainless Steel, Air Operated, Hytrel

  • Mfr # 22A606

  • Zoro # G5485216

product price: $3,928.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
316 Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22A606
Zoro #
G5485216
UPC #
190735168523
Country of Origin
Japan

Dimensions

Air Intake Connection Size
3/8 in FNPT
Manufacturers Warranty Length
1 yr
Overall Width
11-1/4 in
Overall Length
8.5 in
Overall Height
15.1 in
Media Discharge Connection Size
1 1/2 in
Solid Diameter (Maximum)
3/16 in
Media Intake Connection Size
1 1/2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
316 Stainless Steel
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Consumption (Maximum)
55 scfm
Air Intake Connection Type
FNPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
Hytrel
Media Temperature (Maximum)
212 Degrees F
Media Temperature (Minimum)
0 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Includes
Ball Valve
Standards
FDA Compliant
Self-Priming Dry
18 ft
Self-Priming Wet
28 ft
Agency Compliance
FDA Compliant
Inlet/Outlet
1 1/2 in
For Use With
Good for Applications Were FDA Compliant Materials are Required In The Process. Quick Teardown with Tri Clamp Connections and Polished Stainless Steel for Low Contamination and Wash Down.
Flow Rate (Maximum)
46 gpm
Air Intake Pressure (Maximum)
100 psi
Duty Cycle
Continuous
Priming
Self-Priming
For Use With Potable Systems
No
Viscosity (Maximum)
40,000 cps
Mounting Hardware Material
Stainless Steel, Steel
Media Intake Location
Bottom
Flow Rate @ 30 psi
28 gpm
Flow Rate @ 100 psi
45 gpm
Manifold Connection Type
Tri-Clamp
Flow Rate @ 40 psi
30 gpm
Flow Rate @ 60 psi
41 gpm
Media Intake Connection Type
Tri-Clamp
Wetted Housing Material
316 Stainless Steel
Media Discharge Connection Type
Tri-Clamp
Flow Rate @ 70 psi
43 gpm
Media Discharge Location
Top

Description

Double Diaphragm Pump, Air Consumption (Maximum) 55 scfm, Air Intake Connection Size 3/8 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Hytrel, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 46 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Top, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type Tri-Clamp

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
