Shop DAYTON

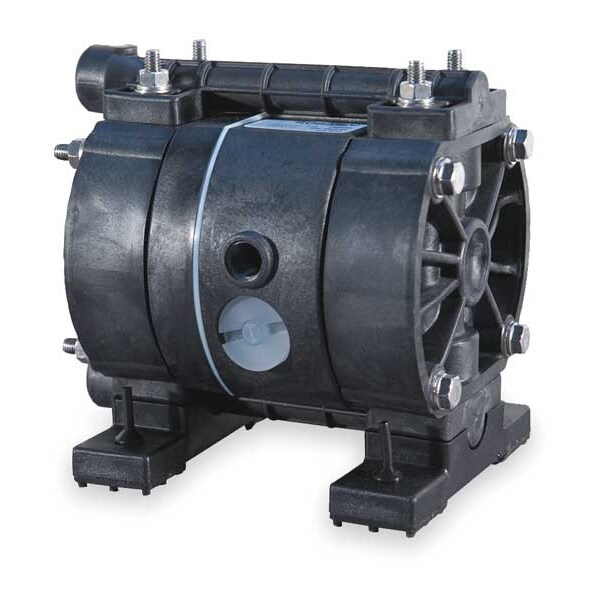

Double Diaphragm Pump, Kynar(R), Air Operated, PTFE, 3.25 GPM

  • Mfr # 3HJV7

  • Zoro # G3333644

product price:  $524.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Kynar®
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Flat
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
3HJV7
Zoro #
G3333644
UPC #
190735289860
Country of Origin
Japan

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Overall Length
6 in
Overall Height
5.8 in
Overall Width
5.9 in
Media Discharge Connection Size
1/4 in
Solid Diameter (Maximum)
0 in
Media Intake Connection Size
1/4 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Kynar®
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Flat
Air Consumption (Maximum)
10 scfm
Air Intake Connection Type
FNPT
Check Seat Material
PVDF
Diaphragm Material
PTFE
Media Temperature (Maximum)
212 Degrees F
Media Temperature (Minimum)
40 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Self-Priming Dry
5 ft
Self-Priming Wet
28 ft
Inlet/Outlet
1/4 in
Media Discharge Connection Type
NPT
Flow Rate @ 100 psi
3.5 gpm
Flow Rate @ 20 psi
2 gpm
Priming
Self-Priming
Duty Cycle
Continuous
Flow Rate @ 80 psi
3.1 gpm
Media Intake Connection Type
NPT
Media Discharge Location
Top
Manifold Connection Type
NPT
Viscosity (Maximum)
500 cps
Flow Rate @ 40 psi
2.26 gpm
Air Intake Pressure (Maximum)
100 psi
For Use With Potable Systems
No
Media Intake Location
Bottom
Feet of Head (Maximum)
231 ft
Mounting Hardware Material
Steel
Flow Rate @ 60 psi
2.75 gpm
Flow Rate (Maximum)
3.3 gpm
Wetted Housing Material
PVDF
Diaphragm Reinforcement
Not Reinforced
Fluid Chamber Assembly Type
Bolted
Includes Solenoid
No Solenoid Included
Center Section Material
Polypropylene
Media Discharge Port Configuration
Side
Media Intake Port Configuration
Side
Material Conductivity
Conductive
Chemical Compatibility
Manifold Port Connection Type
Single Port
Diaphragm Base Material
PTFE
Manifold Connection Standard
NPT
Displacement Per Stroke
0.0039 gal
Includes
Ball Valve, Manual
Wetted Body Material
PVDF
Includes Clean In Place Technology
No Clean In Place Included

Description

Double Diaphragm Pump, Air Consumption (Maximum) 10 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material PVDF, Diaphragm Material PTFE, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 3.3 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/4 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1/4 in, Media Intake Connection Type NPT, Media Intake Location Bottom

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
