  9. Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 12 GPM
Shop All Diaphragm Pumps
Dayton

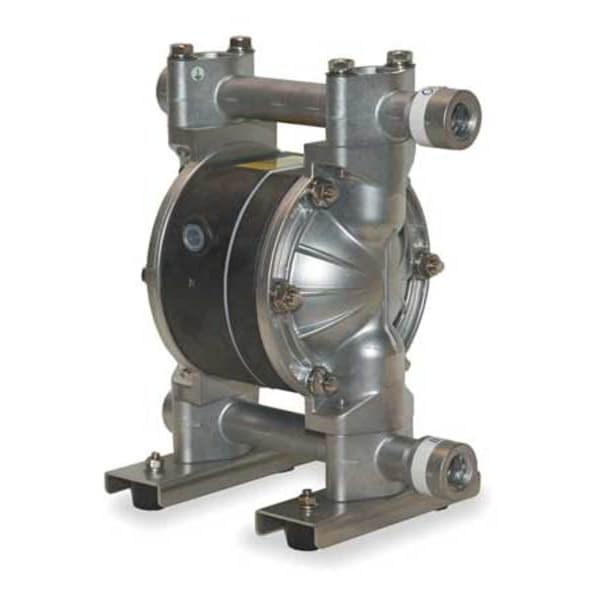

Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 12 GPM

original price: $1,086.91
5% off
new price: $1,027.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Aluminum
  • Diaphragm Material - Pumps PTFE
  • Max. Flow 12 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 212 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1/2 in
Air Inlet Size 1/4 in FNPT
Length 8 21/32 in
Height 10 43/64 in
Max. Dia. Solids 1/32 in
Width 7 5/16 in
Manufacturers Warranty Length 1 yr
Overall Width 7.3 in
Overall Height 10.7 in
Overall Length 8.7 in
Air Intake Connection Size 1/4 in
Solid Diameter (Maximum) 0.03 in
Media Intake Connection Size 1/2 in
Media Discharge Connection Size 1/2 in

Details

Housing Material - Pumps Aluminum
Diaphragm Material - Pumps PTFE
Max. Flow 12 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 212 Degrees F
Connection Style NPT
Check Seat Material Aluminum
Ball Material PTFE
Diaphragm Material PTFE
Valve Type Ball
Operation Type Air Operated
Self-Priming Wet 28 ft
Max. Temp. 212 Degrees F
Max. Flow GPM 12 gpm
Manifold Connection Single Port
Item Double Diaphragm Pump
Max. Operating Pressure 100 psi
Self-Priming Dry 5 ft
Body Material Aluminum
Priming Self-Priming
Media Intake Connection Type NPT
For Use With Potable Systems No
Media Intake Location Bottom
Flow Rate @ 20 psi 5 gpm
Viscosity (Maximum) 15,000 cps
Flow Rate @ 40 psi 8 gpm
Media Temperature (Minimum) 40 Degrees F
Pump Assembly Type Bolt
Flow Rate (Maximum) 12 gpm
Air Intake Pressure (Maximum) 100 psi
Valve Material PTFE
Media Discharge Location Top
Operating Pressure (Maximum) 100 psi
Flow Rate @ 60 psi 9 gpm
Flow Rate @ 100 psi 12 gpm
Manifold Connection Type NPT
Mounting Hardware Material Stainless Steel, Steel
Wetted Housing Material Aluminum
Media Discharge Connection Type NPT
Air Consumption (Maximum) 17 scfm
Duty Cycle Continuous
Media Temperature (Maximum) 212 Degrees F
Flow Rate @ 80 psi 11 gpm
Non-Wetted Housing Material Aluminum
Air Intake Connection Type NPT

Description

Double Diaphragm Pump, Air Consumption (Maximum) 17 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Aluminum, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 12 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPT, Media Intake Location Bottom
