Shop SANDPIPER

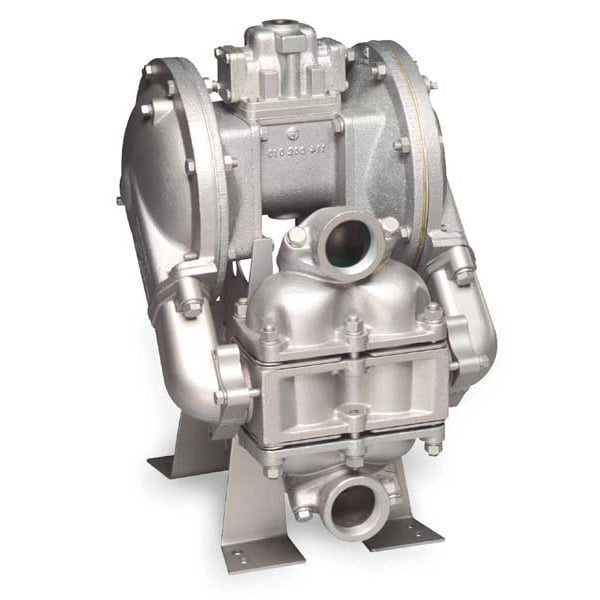

Double Diaphragm Pump, Cast iron, Air Operated, Santoprene, 135 GPM

  • Mfr # HDB2,DS4CI.

  • Zoro # G3480723

product price:  $3,448.99
/ea
Additional $175.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
Cast-Iron
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HDB2,DS4CI.
Zoro #
G3480723
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
5 yr
Overall Length
15.7 in
Overall Width
15.6 in
Overall Height
23.3 in
Media Discharge Connection Size
2 in
Media Intake Connection Size
2 in
Solid Diameter (Maximum)
0.37 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Cast-Iron
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
Air Intake Connection Type
NPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
Santoprene
Media Temperature (Maximum)
275 Degrees F
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
125 psi
Self-Priming Dry
20 ft
Self-Priming Wet
25 ft
Agency Compliance
ATEX, CE, EAC
Pump Operation Type
Air
Standards
ABS Type Approved, CE Marked, EAC Certified, ISO
Inlet/Outlet
2 in
Air Intake Pressure (Maximum)
125 psi
Flow Rate @ 40 psi
118 gpm
Chemical Compatibility
Water
Media Intake Location
Bottom
Manifold Connection Type
NPT
Priming
Self-Priming
Media Intake Connection Type
NPT
NPSHr
5 ft of head
For Use With Potable Systems
No
Media Discharge Location
Top
Wetted Housing Material
Cast Iron
Flow Rate (Maximum)
135 gpm
Flow Rate @ 80 psi
134 gpm
Flow Rate @ 100 psi
135.8 gpm
Flow Rate @ 20 psi
91.5 gpm
Media Discharge Connection Type
NPT
Feet of Head (Maximum)
231 ft
Flow Rate @ 60 psi
130.2 gpm
Material Conductivity
Conductive
Manifold Port Connection Type
Single Port
Media Discharge Port Configuration
Center Horizontal
Wetted Body Material
Cast Iron
Media Intake Port Configuration
Center Horizontal
Diaphragm Base Material
Santoprene
Mounting Hardware Material
Steel
Series
HDB2
Includes Solenoid
No Solenoid Included
Diaphragm Reinforcement
Not Reinforced
Displacement Per Stroke
0.46 gal
Center Section Material
Aluminum
Includes Clean In Place Technology
No Clean In Place Included
Fluid Chamber Assembly Type
Bolted
Manifold Connection Standard
NPT

Description

Double Diaphragm Pump, Air Consumption (Maximum) 100 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 135 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 2 in, Media Intake Connection Type NPT
