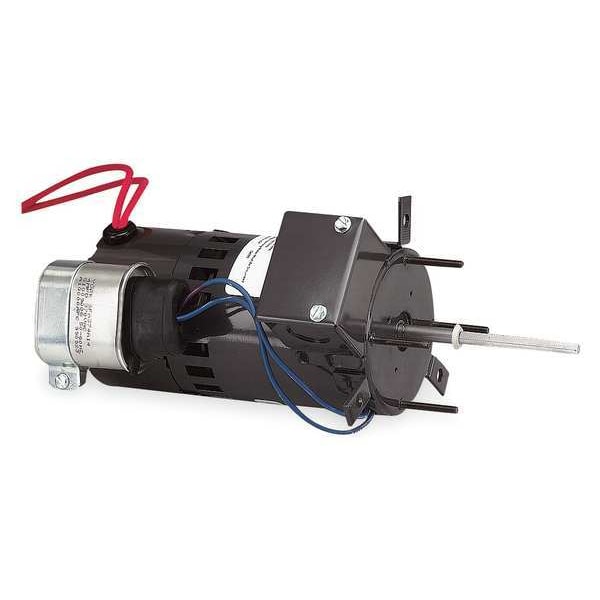

Draft Booster Motor, 1/9 hp

  • Mfr # 71624043M
  • Zoro # G0267775
product price:
$
197.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
HP
1/9
RPM Range
1,801-3,000
Nameplate RPM
3,000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71624043M
Zoro #
G0267775
UPC #
190735131787
Country of Origin
Mexico

Dimensions

Shaft Length
3 3/4 in
Shaft Dia.
1/4 in
Body Dia.
3 5/16 in
Frame Size
Non-Standard
Overall Length
10 1/2 in
Shaft Diameter
1/4 in
Body Diameter
3.3 in
Wire Rope Length
10 1/2 in
Length
10 1/2 in

Details

Item
Draft Booster Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
HP
1/9
RPM Range
1,801-3,000
Nameplate RPM
3,000
Voltage
230V AC
Frame
Non-Standard
Motor Thermal Protection
Auto
Phase
Single
Standards
UL Recognized and CSA Certified
Duty
Continuous
Contact Break
800 RPM
Ins. Class
B
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Motor Mounting Type
Lug
Motor Shaft Rotation
CW/CCW
Includes
Centrifugal Safety Switch, 5/16" Diameter Shaft Bushing
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Hz
50/60 Hz
Footnotes
Extended Studs
Contact Make
1,800 RPM
Mounting Pattern
C
Full Load Amps
0.6 A
Motor Service Factor
1
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
HP @ 50Hz
1/9
Usable @ 200V
Not Usable at 200V
Full Load Amps @ 50Hz
0.60 A
RPM @ 50Hz
3,000
Duty Cycle
Continuous
Voltage @ 50Hz
230V AC
Motor Mounting Position
All Angle
Service Factor @ 50Hz
1
Motor Application
HVAC/R
Capacitor Required
Capacitor Included
Type
Draft Booster
Nameplate Voltage @ 50 Hz
230V AC
Full Load Current @ 50 Hz
0.60 A
Wattage
83 W
Product Type
Draft Booster Motor
Efficiency Rating
Standard Efficiency (IE1)
Frequency
60/50 Hz
Number of Speeds
1
Insulation Class
B
Nameplate RPM @ 50 Hz
3,000 RPM
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Application
Draft Inducer
Nameplate Service Factor @ 50 Hz
1
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
0.60 A
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Sub Application
Draft Booster
Nameplate Horsepower @ 50 Hz
1/9 hp

Description

Draft Booster Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/9 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 230V AC, 0.6 A Full Load Amps, Non-Standard Frame, 60/50 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Lug, Motor Mounting Position All Angle
