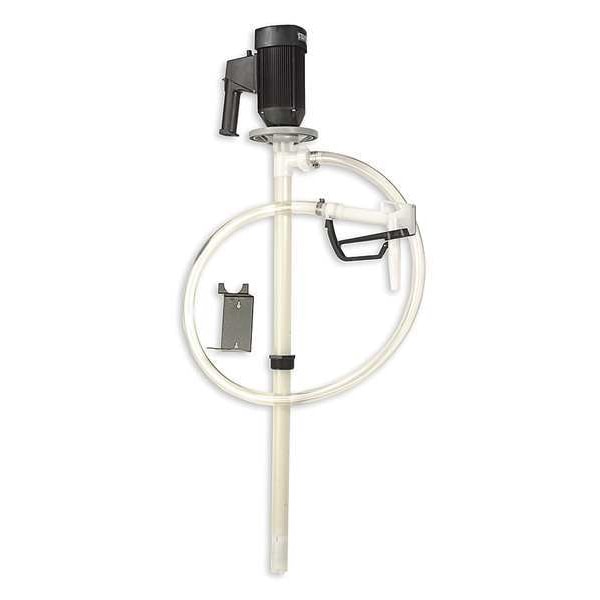

Drum Pump, 110VAC, 1 HP, 60 Hz

Drum Pump, 110VAC, 1 HP, 60 Hz

Mfr # 1DLR1
Zoro # G1345172

$2,229.99

Free Shipping & Returns

Key Features

For Use With

9420

Max. Viscosity

1,500 cps

Motor Type

Electric AC Brush

Power Source

Electric

Outlet Size

1" barb

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

1DLR1

Zoro #

G1345172

UPC #

190735135358

Country of Origin

United States

Dimensions

Outlet Size

1" barb

Adapter Dia.

Overall Length

52 in

Height

39"

Inlet Size

1.6"

Suction Tube Length

39 in

Discharge Tube Length

6 ft.

For Container Size

55 gal

Hose Outside Dia.

1 1/2 in

Hose Length

72 in

Bung Connection Dia.

2 in

Hose Inside Dia.

1 in

Cord Length

16 ft

Details

For Use With

9420

Item

Electric Operated Drum Pump

Max. Viscosity

1,500 cps

Motor Type

Electric AC Brush

Power Source

Electric

Wetted Materials

Carbon Graphite, Hastelloy C-276, Polyethylene, Polypropylene, PVDF, Viton

Voltage

110vac

Motor Enclosure

TEFC

Metered

Max. Flow GPM

32 gpm

Motor RPM

0-10,000

Standards

UL Recognized Component (Motor Only)

Adapter Material

Polypropylene

Max. Temp.

175 Degrees F

Self-Priming

Yes

DEF Compatible

Max. GPM for Oil

Action Type

Centrifugal

GPM

Type

Motor and Tube

Max. Head

36 ft.

RPM

10,000

Pump Body Material

Kynar(R)

Phase

Housing Material

Kynar(R)

Discharge Tubing Material

PVC

Max. Liquid Temp.

175 Degrees F

Adapter Type

Bung

Agency Compliance

ETL Recognized Component(Motor Only)

Suction Tube Type

Centrifugal

Max. GPM for Water

Max. Pressure

16 psi

Application

To Transfer Very Concentrated and Extremely Aggressive Liquids

Max. Oil Flow

7 gpm

Seal Material

Sealless

Variable Speed

Yes

Nozzle Material

PVDF

Hose Cover Material

Polyethylene

Hose Tube Material

Polyethylene

Includes Spout

Compatible Chemicals

Acetic Acid 20%, Acetic Acid 80%, Ammonia (Liquids), Ammonium Hydroxide, Calcium Chloride, Chromic Acid 30%, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fresh Water, Glycerin, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Trichlorethylene (50%)

Thermal Protection

Yes

Discharge Tube Outlet OD

1 1/2 in

Suction Tube Material

Kynar

Max. Head - Pumps

36 ft

Includes Nozzle

Yes

Not Recommended Chemicals

Acetic Acid (Glacial), Acetone, Cyclohexane, DEF, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Gasoline, Heptane, Hexane, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Stoddard Solvent (Mineral Spirits), Toluene, Xylene

Food Grade

Max. Fluid Temp.

175 Degrees F

Runs Dry

Yes

Frequency (Hz)

50/60 Hz

For Container Type

Drum

Suction Tube ID

1 3/8 in

Number of Phases

Diesel Exhaust Fluid Compatible

Includes Bung Adapter

Yes

Spout Connection Type

Hose Barb

For Media Type

Acetic Acid, Ammonia, Ammonium Hydroxide, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Glycerin, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Trichlorethylene, Water

Includes Suction Tube

Yes

Noise Level

88 db

Full Load Amps

8.5 A

Duty Cycle

Intermittent

Motor HP

1 1/10 hp

Nozzle Operation

Manual

Discharge Connection Type

Hose Barb

Plug Type

NEMA 5-15-P

Suction Tube OD

1 5/8 in

Includes Discharge Hose

Yes

Max. Flow Rate

15 gpm

Discharge Tube Outlet ID

1 in

Max. Head Pressure

16 psi

Housing Material - Pumps

Kynar(R)

Rated Voltage

110V AC

Adapter Connection Type

MNPT

Gear Lube

Max. Outlet Pressure

16 psi

Grease

Description

Electric Drum Pump, Hose Inside Dia. 1 in, Max. Head Pressure 16 psi, Max. Oil Flow 7 gpm, Max. Outlet Pressure 16 psi, For Use With 9420, Rated Voltage 110 V AC, Plug Type NEMA 5-15P, Suction Tube OD 1 5/8 in, Hose Length 6 ft, Suction Tube Length 39 in, Cord Length 16 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Manual, Thermal Protection Yes, Frequency (Hz) 50/60 Hz, Power Source Corded Electric, Variable Speed Yes, Includes Discharge Hose Yes, Self-Priming Yes
