For Use With SP-ENC-V/SP-8850-39

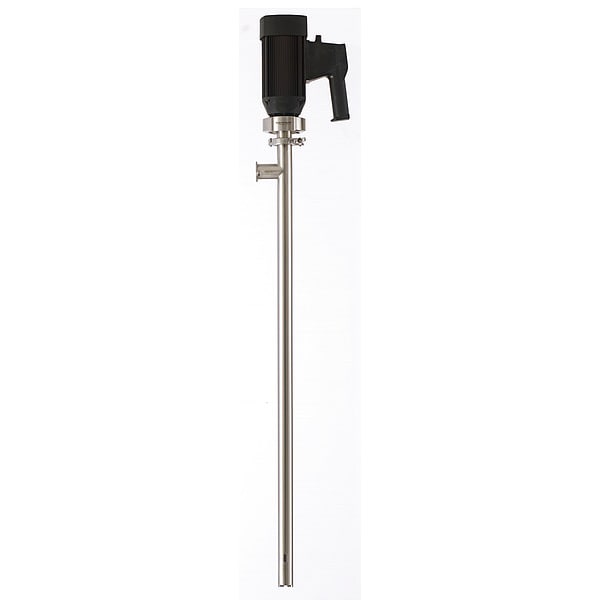

Item Electric Drum Pump
Max. Viscosity 1,000 cps
Motor Type Electric AC Brush
Power Source Corded Electric
Wetted Materials 316 Stainless Steel, PTFE
Voltage 120VAC
Motor Enclosure TEFC
Metered No
Motor RPM 0-10,000
Max. Pressure 10 psi
Full Load Amps 8.5 A
GPM 3.1
Agency Compliance 3A, ETL, FDA Compliant
DEF Compatible No
Suction Tube Material Stainless Steel
Housing Material 316 Stainless Steel
Adapter Material 316 Stainless Steel
HP 1-7/64
Thermal Protection Yes
Hz 60
Self-Priming Yes
Suction Tube Type Centrifugal
Phase Single
Max. Liquid Temp. 175 Degrees F
Duty Intermittent
Clamp Style Tri-Clamp
Max. Head 23 ft.
Max. GPM for Water 35
Features Hygienic Design, Quick Tear Down
Frequency (Hz) 50/60 Hz
Max. Fluid Temp. 175 Degrees F
Plug Type NEMA 5-15P
Max. Head Pressure 11 psi
Includes Nozzle No
Includes Discharge Hose No
For Container Type Drum
Variable Speed Yes
Includes Bung Adapter No
Seal Material Sealless
Food Grade Yes
Max. Flow Rate 31 gpm
Suction Tube OD 1 5/8 in
Includes Suction Tube Yes
Diesel Exhaust Fluid Compatible No
Max. Head - Pumps 25 ft For Media Type
See full list of For Media Type Acetic Acid,Ammonia,Ammonium Hydroxide,Antifreeze,Calcium Chloride,Citric Acid,Ethylene Glycol,Glycerin,Hydraulic Oil,Methyl Chloride,Motor Oil,Nitric Acid,Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide,Trichlorethylene,Water
Suction Tube ID 1 5/16 in Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Acetic Acid 80%,Ammonia (Liquids),Ammonium Hydroxide,Antifreeze (Coolant),Calcium Chloride,Citric Acid 50%,Deionized Water,Ethylene Glycol,Fresh Water,Glycerin,Hydraulic Oils (Petroleum),Hydraulic Oils (Synthetic),Methyl Chloride,Motor Oil,Nitric Acid (10% Solution),Nitric Acid (20% Solution),Nitric Acid (50% Solution),Nitric Acid (Concentrated Solution),Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide/Caustic Soda (20%),Sodium Hydroxide/Caustic Soda (50%),Trichlorethylene (50%)
Duty Cycle Intermittent Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetone,Bleach,Chromic Acid 30%,Chromic Acid 50%,Cyclohexane,DEF,Diesel Fuel,Ethanol,Ethyl Acetate,Formaldehyde,Formaldehyde 40%,Formic Acid,Gasoline,Glacial Acetic Acid,Heptane,Hexane,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Isopropanol,Kerosene,Lacquer Thinners,Methanol,Methyl Ethyl Ketone,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Toluene,Xylene
Runs Dry Yes
Number of Phases 1
Motor HP 1 1/10 hp
Housing Material - Pumps 316 Stainless Steel
Discharge Tube Outlet ID 1 in
Discharge Connection Type Tri-Clamp
Noise Level 88 dB
Discharge Tube Outlet OD 1 1/2 in
Max. Oil Flow 7 gpm
Max. Outlet Pressure 11 psi
Gear Lube NT
Grease NT
Rated Voltage 120 V AC
Maximum Outlet Pressure 11 psi
Frequency 50/60 Hz
Maximum Flow Rate 31 gpm
Wetted Material 316 Stainless Steel/Buna-N/PTFE
Full Load Current 8.5 A
Maximum Viscosity 1,000 cps
Motor Horsepower 1 1/10 hp
Maximum Head 25 ft
Standards 3A, ETL, FDA
Maximum Head Pressure 11 psi
Maximum Oil Flow 7 gpm
Maximum Fluid Temperature 175 Degrees F Chemical Compatibility
See full list of Chemical Compatibility Acetic Acid 20%,Acetic Acid 80%,Ammonia Liquid,Ammonium Hydroxide,Antifreeze Coolant,Calcium Chloride,Citric Acid 50%,Concentrated Nitric Acid,Deionized Water,Ethylene Glycol,Fresh Water,Glycerin,Petroleum Oil,Synthetic Oil,Methyl Chloride,Motor Oil,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Phosphoric Acid 40% Solution,Potassium Hydroxide 50%,Salt Water,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Trichlorethylene 50%
Meter Type Included No Meter Included
Motor Enclosure Design Totally Enclosed Fan Cooled
Power Source - TS Only Corded Electric
Power Source - old Corded Electric
