Shop DAYTON

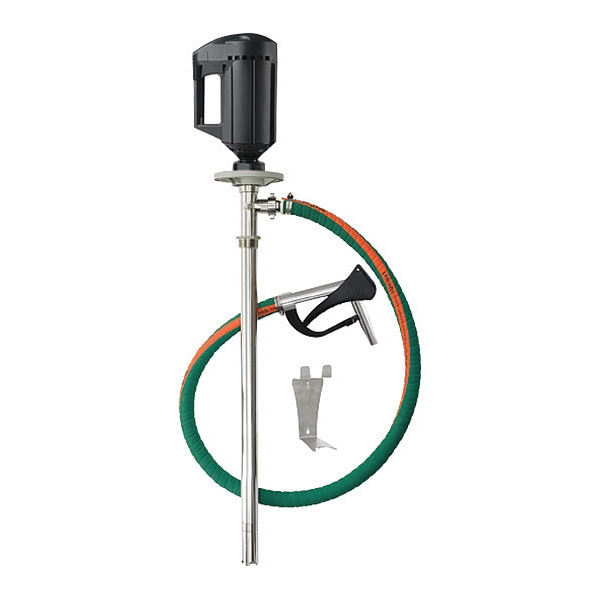

ElectricDrumPump, StainlessSteel, 120VAC

  • Mfr # 55EC83

  • Zoro # G7588102

product price:
$
5,470.99
/ea
Free Shipping & Returns

Key Features

For Use With
9922 EX
Max. Viscosity
1,000 cps
Motor Type
Electric AC Brush
Power Source
Corded Electric
Wetted Materials
Carbon, PTFE, Stainless Steel, UHMWPE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
55EC83
Zoro #
G7588102
UPC #
-
Country of Origin
United States

Dimensions

Suction Tube Length
47 in
Overall Length
63 in
Length
63 in
Bung Connection Dia.
2 in
Hose Inside Dia.
1 in
Hose Outside Dia.
1 1/2 in
Cord Length
12 ft
For Container Size
275 gal
Hose Length
6 ft
Adapter Connection Diameter
2 in
Hose Outside Diameter
1 1/2 in
Hose Inside Diameter
1 in
Wire Rope Length
63 in

Details

For Use With
9922 EX
Item
Electric Drum Pump
Max. Viscosity
1,000 cps
Motor Type
Electric AC Brush
Power Source
Corded Electric
Wetted Materials
Carbon, PTFE, Stainless Steel, UHMWPE
Motor Enclosure
Explosion Proof
Metered
No
Motor RPM
0-12,000
Nozzle Operation
Manual
Variable Speed
Yes
Max. Oil Flow
7 gpm
Includes Spout
No
Rated Voltage
120 V AC
Seal Material
Sealless
Noise Level
82 dB
Hose Tube Material
UHMW-PE
Adapter Connection Type
MNPT
Thermal Protection
Yes
Discharge Connection Type
Hose Barb
Adapter Material
304 Stainless Steel
Phase
Single
Max. Fluid Temp.
175 Degrees F
Duty Cycle
Intermittent
Hose Cover Material
UHMW-PE
Max. Head - Pumps
27 ft
Includes Bung Adapter
Yes
Motor HP
1 1/3 hp
Max. Outlet Pressure
12 psi
Number of Phases
1
Food Grade
No
Explosion Proof
Yes
Diesel Exhaust Fluid Compatible
No
Includes Discharge Hose
Yes
Max. Head Pressure
12 psi
Max. Flow Rate
18 gpm
For Media Type
General Purpose
Suction Tube OD
1 5/8 in
Includes Nozzle
Yes
For Container Type
Tote
Suction Tube Material
Stainless Steel
Housing Material - Pumps
316 Stainless Steel
Nozzle Material
Stainless Steel
Discharge Tube Outlet OD
1 1/2 in
Includes Suction Tube
Yes
Agency Compliance
CSA Motor
Discharge Tube Outlet ID
1 in
Housing Material
316 Stainless Steel
Runs Dry
Yes
Spout Connection Type
Hose Barb
Full Load Amps
4.2 A
Suction Tube ID
1 5/16 in
Self-Priming
Yes
Frequency (Hz)
50/60 Hz
Full Load Current
4.2 A
Motor Horsepower
1 1/3 hp
Frequency
50/60 Hz
Maximum Fluid Temperature
175 Degrees F
Maximum Viscosity
1,000 cps
Meter Type Included
No Meter Included
Maximum Head
27 ft
Standards
CSA Motor
Maximum Head Pressure
12 psi
Adapter Connection Standard
MNPT
Maximum Outlet Pressure
12 psi
Maximum Flow Rate
18 gpm
Maximum Oil Flow
7 gpm
Wetted Material
Carbon/PTFE/Stainless Steel/UHMWPE
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Hose Inside Dia. 1 in, Max. Head Pressure 12 psi, Max. Oil Flow 7 gpm, Max. Outlet Pressure 12 psi, For Use With 9922 EX, Rated Voltage 120 V AC, Suction Tube OD 1 5/8 in, Hose Length 6 ft, Suction Tube Length 47 in, Cord Length 12 ft, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Manual, Thermal Protection Yes, Frequency (Hz) 50/60 Hz, Power Source Corded Electric, Variable Speed Yes, Includes Discharge Hose Yes, Self-Priming Yes
