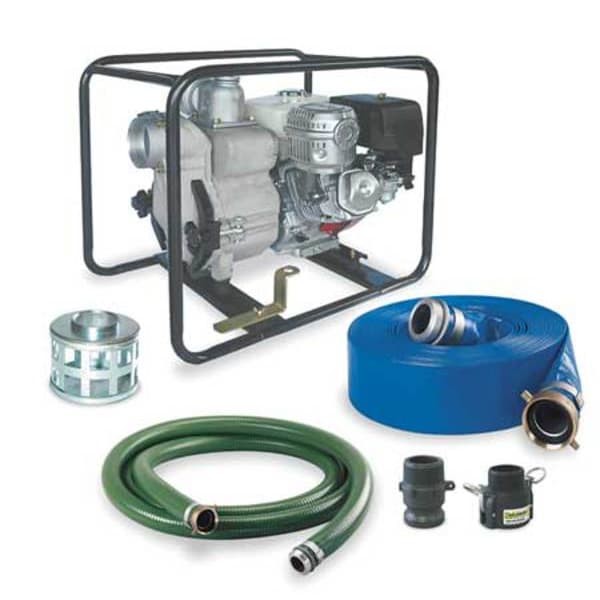

Engine Drive Pump Kit, 11 HP, Honda Engine

Mfr # 7AJ19
Zoro # G1709976

$3,981.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Solids Handling Capacity 1-1/8"
Impeller Material Cast Iron
Material of Construction Aluminum
Length 28-3/4"
Height 24"

See all product information

Brand Dayton
MFR # 7AJ19
Zoro # G1709976
UPC #
00194484310158
Country of Origin Multiple
Category Engine Driven Pumps

Dimensions

Length	28-3/4"
Height	24"
Width	19"
Engine Size	337 cc
Overall Width	19 in
Inlet Dia.	4 in
Overall Length	28 3/4 in
Overall Height	24 in
Max. Diameter Solids	1 1/8 in
Discharge Dia.	4 in

Details

Solids Handling Capacity	1-1/8"
Impeller Material	Cast Iron
Material of Construction	Aluminum
Tank Capacity	1.72 gal
Check Valve	Buna N
Max. Pressure	35 psi
Inlet	4 in
Casing Adapter	Aluminum
Temp. Range	35 Degrees to 105 Degrees F
Max. Head	80 ft
Item	Engine Driven Utility Pump
Engine Brand	Honda OHV
Max. Suction Lift	25 ft
Roll Bar Frame	Steel
Sensor Type	Low Oil
Engine RPM	3600
GPM of Water @ 20 Ft. of Head	410
Engine/Motor Type	Gas
Includes	1MJU2- 4 in Female Coupler, 1MJU7- 4 in Male Cam Adapter, 2P569- 4 in x 20 ft Green Suction Hose, 1FYR7- 4 in x 50 ft Blue Discharge Hose, 2EHE8- 4 in Strainer
Mechanical Seal	Silicon Carbide, Buna N
GPM of Water @ 40 Ft. of Head	290
GPM of Water @ 70 Ft. of Head	75
GPM of Water @ 50 Ft. of Head	220
GPM of Water @ 10 Ft. of Head	430
Number of Impellers	1
Application	Trash
GPM of Water @ 60 Ft. of Head	150
Outlet	4" Cam and Groove
HP	9 1/2 hp
Seal Material	Buna N, Silicon Carbide
Impeller Type	Semi-Open
Volute/Wear Plate	Cast Iron/Stainless Steel
Ignition Type	Electronic
GPM of Water @ 30 Ft. of Head	360
Agency Compliance	EPA and CARB Certified Engine
Impeller Design	Semi-Open
Pump Mechanism	Centrifugal
Maximum Discharge Pressure	35 psi
Discharge	4 in
RPM	3,600 RPM
Power Source	Gas
Body Material	Aluminum
Frame Material	Steel
Flow Rate @ 20 Ft. of Head	410 gpm
Flow Rate @ 10 Ft. of Head	430 gpm
Frame Design	Full-Frame
Flow Rate @ 40 Ft. of Head	290 gpm
Flow Rate @ 60 Ft. of Head	150 gpm
Volute Material	Cast Iron/Stainless Steel
Frame Design - Pumps	Full Tubular Frame

Description

Engine Driven Utility Pump, Engine Size 337 cc, HP 9 1/2 hp, Tank Capacity 1.72 gal, Ignition Type Electronic, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Cast Iron/Stainless Steel, Seal Material Buna N, Silicon Carbide, Frame Material Steel, Flow Rate @ 10 Ft. of Head 430 gpm, Flow Rate @ 20 Ft. of Head 410 gpm, Flow Rate @ 40 Ft. of Head 290 gpm, Flow Rate @ 60 Ft. of Head 150 gpm, Max. Head 80 ft, Max. Suction Lift 25 ft, Frame Design - Pumps Full Tubular Frame
