Shop DAYTON

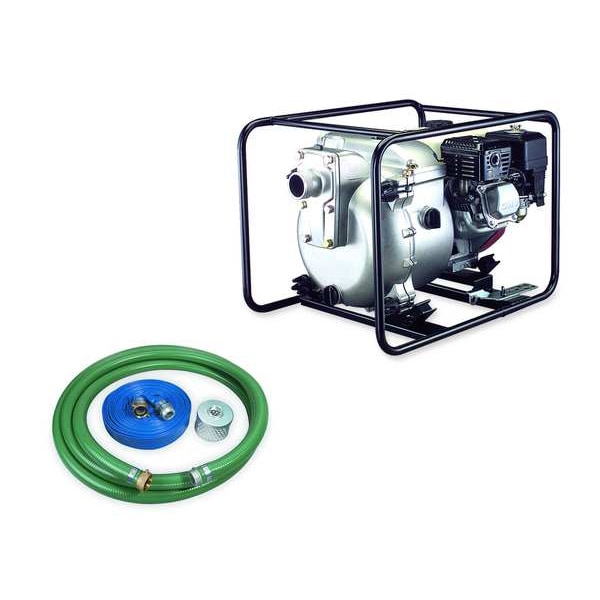

Engine Drive Pump Kit, 4.8HP, Honda Engine

  • Mfr # 7AJ11

  • Zoro # G3420663

product price:  $1,684.99
/ea
Additional $70.00 delivery surcharge applies per item.
See details

Key Features

Number of Impellers
1
Impeller Material
Cast Iron
Inlet
2 in NPSM
Ignition Type
Electronic
GPM of Water @ 40 Ft. of Head
133
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
7AJ11
Zoro #
G3420663
UPC #
00799471519479
Country of Origin
Multiple

Dimensions

Height
15-1/2"
Width
17-1/8"
Engine Size
163 cc
Length
22-1/2"
Overall Height
15 1/2 in
Overall Length
22 1/2 in
Max. Diameter Solids
13/16 in
Overall Width
17 1/8 in
Discharge Dia.
2 in
Inlet Dia.
2 in
Inlet Diameter
2 in
Discharge Diameter
2 in
Solids Diameter - Maximum
13/16 in

Details

Number of Impellers
1
Impeller Material
Cast Iron
Inlet
2 in NPSM
Ignition Type
Electronic
GPM of Water @ 40 Ft. of Head
133
HP
4 13/16 hp
Check Valve
Buna N
Solids Handling Capacity
13/16"
GPM of Water @ 30 Ft. of Head
148
Impeller Type
Semi-Open
Includes
2 in Hose Kit
GPM of Water @ 50 Ft. of Head
115
GPM of Water @ 60 Ft. of Head
90
Temp. Range
35 Degrees to 105 Degrees F
GPM of Water @ 80 Ft. of Head
30
GPM of Water @ 10 Ft. of Head
165
Max. Pressure
38 psi
Engine RPM
3600
Item
Engine Driven Pump
Mechanical Seal
Silicon Carbide, Buna N
Application
Trash
Agency Compliance
EPA and CARB Certified Engine
Engine Brand
Honda
Max. Suction Lift
25 ft
Seal Material
Buna-N/Silicon Carbide
Material of Construction
Aluminum
Roll Bar Frame
Steel
Engine/Motor Type
Gas
Outlet
2" NPSM
Casing Adapter
Aluminum
Max. Head
88 ft
GPM of Water @ 20 Ft. of Head
157
GPM of Water @ 70 Ft. of Head
61
Volute/Wear Plate
Cast Iron
Sensor Type
Low Oil
Tank Capacity
0.95 gal
Frame Design
Roll Cage
Pump Mechanism
Centrifugal
Power Source
Gas Engine
Flow Rate @ 20 Ft. of Head
157 gpm
Flow Rate @ 60 Ft. of Head
90 gpm
Impeller Design
Semi-Open
Flow Rate @ 80 Ft. of Head
30 gpm
Volute Material
Cast Iron
Body Material
Aluminum
Frame Material
Steel
Flow Rate @ 40 Ft. of Head
133 gpm
Inlet Standard
NPSM
Maximum Discharge Pressure
38 psi
RPM
3,600 RPM
Discharge Standard
NPSM
Flow Rate @ 10 Ft. of Head
165 gpm
Discharge
2 in NPSM
Frame Design - Pumps
Full Tubular Frame
Standards
CARB Certified Engine, EPA Certified Engine
Suction Lift - Maximum
25 ft
Feet of Head - Maximum
88 ft
Flow Rate @ 20 ft of Head
157 gpm
Rotation Speed - Maximum
3,600 RPM
Horsepower
4 13/16 hp
Discharge Pressure - Maximum
38 psi
Flow Rate @ 10 ft of Head
165 gpm
Power Source - TS Only
Gas Engine

Description

Engine Driven Pump, Engine Size 163 cc, HP 4 13/16 hp, Tank Capacity 0.95 gal, Ignition Type Electronic, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Cast Iron, Seal Material Buna-N/Silicon Carbide, Frame Material Steel, Flow Rate @ 10 Ft. of Head 165 gpm, Flow Rate @ 20 Ft. of Head 157 gpm, Flow Rate @ 40 Ft. of Head 133 gpm, Flow Rate @ 60 Ft. of Head 90 gpm, Flow Rate @ 80 Ft. of Head 30 gpm, Max. Head 88 ft, Max. Suction Lift 25 ft
