Shop DAYTON

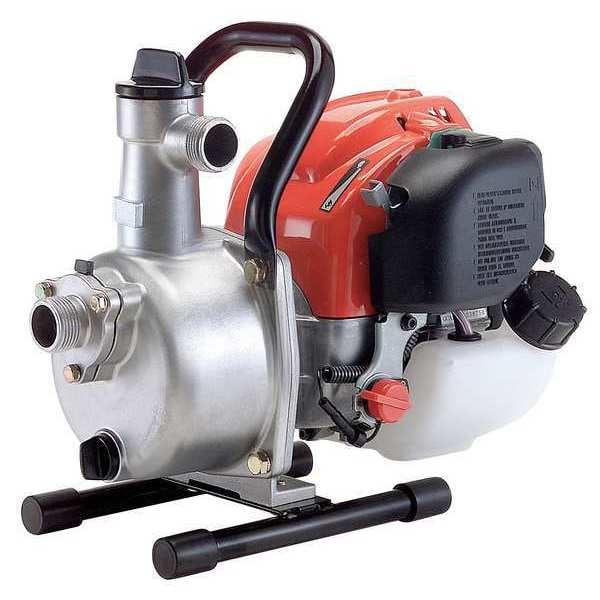

Engine Driven Centrifugal Pump, 1 HP

  • Mfr # 11G226

  • Zoro # G4270804

product price:  $559.99
/ea
Free Shipping & Returns

Key Features

Seal Material
Buna-N
Max. Pressure
47.2 psi
Sensor Type
None
Casing Adapter
Aluminum
Width
9-5/16"
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
11G226
Zoro #
G4270804
UPC #
190735110645
Country of Origin
Japan

Dimensions

Width
9-5/16"
Height
13-13/16"
Engine Size
25 cc
Length
14-13/16"
Overall Width
9 5/16 in
Inlet Dia.
1 in
Overall Height
13 13/16 in
Discharge Dia.
1 in
Overall Length
14 13/16 in
Inlet Diameter
1 in
Discharge Diameter
1 in

Details

Seal Material
Buna-N
Max. Pressure
47.2 psi
Sensor Type
None
Casing Adapter
Aluminum
GPM of Water @ 100 Ft. of Head
4
Check Valve
Buna N
GPM of Water @ 10 Ft. of Head
29
Mechanical Seal
Ceramic, Buna N
Ignition Type
Recoil-Start
Impeller Type
Semi-Open
Max. Head
106 ft
GPM of Water @ 50 Ft. of Head
21
Volute/Wear Plate
Aluminum
Item
Engine Driven Pump
Outlet
1" NPT
Engine/Motor Type
Gas
GPM of Water @ 20 Ft. of Head
27
Material of Construction
Aluminum
Engine Brand
Honda
Tank Capacity
0.58 qt
GPM of Water @ 30 Ft. of Head
25
Includes
3/4 in Garden hose adapter
GPM of Water @ 70 Ft. of Head
16
Number of Impellers
1
GPM of Water @ 40 Ft. of Head
23
Agency Compliance
EPA and CARB Certified Engine
Impeller Material
Aluminum
Engine RPM
3600
Application
General Purpose
Temp. Range
35 Degrees to 105 Degrees F
GPM of Water @ 60 Ft. of Head
19
GPM of Water @ 90 Ft. of Head
9
Roll Bar Frame
Steel
Self-Priming
Yes
Max. Suction Lift
26 ft
HP
1 hp
Inlet
1 in NPT
GPM of Water @ 80 Ft. of Head
13
Discharge
1 in NPT
Maximum Discharge Pressure
47 psi
Discharge Standard
NPT
Flow Rate @ 40 Ft. of Head
23 gpm
Pump Mechanism
Centrifugal
Flow Rate @ 80 Ft. of Head
13 gpm
Volute Material
Aluminum
Impeller Design
Semi-Open
Power Source
Gas Engine
Inlet Standard
NPT
Body Material
Aluminum
RPM
3,600 RPM
Flow Rate @ 60 Ft. of Head
19 gpm
Frame Design - Pumps
Frame Rails with Top Handle
Standards
CARB Certified Engine, EPA Certified Engine
Horsepower
1 hp
Discharge Pressure - Maximum
47 psi
Rotation Speed - Maximum
3,600 RPM
Engine Series
GX25
Feet of Head - Maximum
106 ft
Suction Lift - Maximum
26 ft
Frame Design
Frame Rails with Top Handle
Power Source - TS Only
Gas Engine

Description

Engine Driven Pump, Engine Size 25 cc, HP 1 hp, Tank Capacity 0.58 qt, Ignition Type Recoil-Start, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Aluminum, Seal Material Buna-N, Flow Rate @ 40 Ft. of Head 23 gpm, Flow Rate @ 60 Ft. of Head 19 gpm, Flow Rate @ 80 Ft. of Head 13 gpm, Max. Head 106 ft, Max. Suction Lift 26 ft, Frame Design - Pumps Frame Rails with Top Handle, Impeller Design Semi-Open, Maximum Discharge Pressure 47 psi, Inlet 1 in NPT, Discharge 1 in NPT
