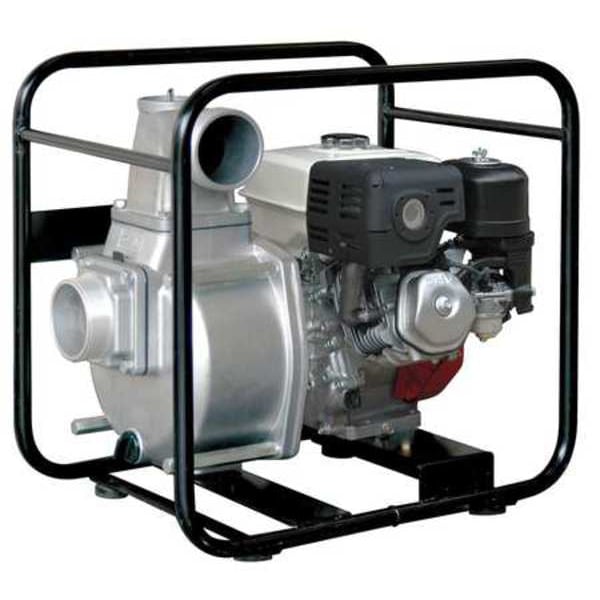

Dayton Engine Driven Semi-Trash Pump, 7.1 HP 11G236 - main

Engine Driven Semi-Trash Pump, 7.1 HP

  • Mfr # 11G236

  • Zoro # G4248955

product price: $1,689.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

Self-Priming
Yes
Width
19"
Outlet
4" NPT
GPM of Water @ 80 Ft. of Head
112
Mechanical Seal
Silicon Carbide, Buna N
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11G236
Zoro #
G4248955
UPC #
190735110744
Country of Origin
Japan

Dimensions

Width
19"
Engine Size
242 cc
Height
26-13/32"
Length
26-19/32"
Overall Width
19 in
Max. Diameter Solids
3/4 in
Overall Height
26 7/16 in
Discharge Dia.
4 in
Overall Length
26 5/8 in
Inlet Dia.
4 in
Solids Diameter - Maximum
3/4 in
Discharge Diameter
4 in
Inlet Diameter
4 in

Details

Self-Priming
Yes
Outlet
4" NPT
GPM of Water @ 80 Ft. of Head
112
Mechanical Seal
Silicon Carbide, Buna N
Number of Impellers
1
GPM of Water @ 10 Ft. of Head
363
Sensor Type
Low Oil
GPM of Water @ 20 Ft. of Head
339
Impeller Type
Semi-Open
Roll Bar Frame
Steel
GPM of Water @ 40 Ft. of Head
290
GPM of Water @ 50 Ft. of Head
259
Application
Semi-Trash
Solids Handling Capacity
3/4"
Agency Compliance
EPA and CARB Certified Engine
GPM of Water @ 70 Ft. of Head
171
Engine/Motor Type
Gas
Temp. Range
35 Degrees to 105 Degrees F
Engine Brand
Honda
Casing Adapter
Spheroid Graphite Ductile
Check Valve
Buna N
GPM of Water @ 30 Ft. of Head
318
Max. Head
92 ft
Inlet
4 in NPT
GPM of Water @ 60 Ft. of Head
216
Tank Capacity
5.6 qt
Seal Material
Buna-N
Ignition Type
Recoil-Start
GPM of Water @ 90 Ft. of Head
15
Volute/Wear Plate
Spheroid Graphite Ductile Iron
Impeller Material
Spheroid Graphite Ductile
Engine RPM
3600
Max. Suction Lift
26 ft
Item
Engine Driven Pump
HP
7 1/10 hp
Max. Pressure
39.8 psi
Material of Construction
Aluminum
Discharge Standard
NPT
Maximum Discharge Pressure
40 psi
Body Material
Aluminum
Inlet Standard
NPT
Power Source
Gas Engine
Volute Material
Ductile Iron
Flow Rate @ 40 Ft. of Head
290 gpm
Pump Mechanism
Centrifugal
Flow Rate @ 60 Ft. of Head
216 gpm
RPM
3,600 RPM
Discharge
4 in NPT
Flow Rate @ 80 Ft. of Head
112 gpm
Impeller Design
Semi-Open
Frame Design - Pumps
Full Tubular Frame
Standards
CARB Certified Engine, EPA Certified Engine
Suction Lift - Maximum
26 ft
Horsepower
7 1/10 hp
Discharge Pressure - Maximum
40 psi
Rotation Speed - Maximum
3,600 RPM
Frame Design
Roll Cage
Feet of Head - Maximum
92 ft
Engine Series
GX240

Description

Engine Driven Pump, Engine Size 242 cc, HP 7 1/10 hp, Tank Capacity 5.6 qt, Ignition Type Recoil-Start, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Ductile Iron, Seal Material Buna-N, Flow Rate @ 40 Ft. of Head 290 gpm, Flow Rate @ 60 Ft. of Head 216 gpm, Flow Rate @ 80 Ft. of Head 112 gpm, Max. Head 92 ft, Max. Suction Lift 26 ft, Frame Design - Pumps Full Tubular Frame, Impeller Design Semi-Open, Maximum Discharge Pressure 40 psi, Max. Diameter Solids 3/4 in
