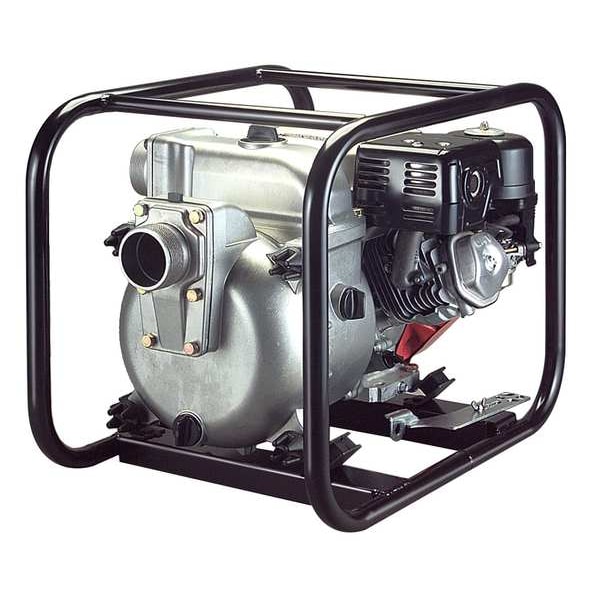

Engine Trash Pump, 7.1 HP

  • Mfr # 11G238

  • Zoro # G4270034


product price: $2,048.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

Engine/Motor Type
Gas
GPM of Water @ 50 Ft. of Head
253
Temp. Range
35 Degrees to 105 Degrees F
Agency Compliance
EPA and CARB Certified Engine
GPM of Water @ 60 Ft. of Head
224
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11G238
Zoro #
G4270034
UPC #
190735110768
Country of Origin
Japan

Dimensions

Width
20-5/16"
Engine Size
242 cc
Height
23-7/64"
Length
28-13/32"
Overall Height
23 1/8 in
Inlet Dia.
3 in
Overall Length
28 7/16 in
Discharge Dia.
3 in
Max. Diameter Solids
1 1/2 in
Overall Width
20 5/16 in
Solids Diameter - Maximum
1 1/2 in
Discharge Diameter
3 in
Inlet Diameter
3 in

Details

Engine/Motor Type
Gas
GPM of Water @ 50 Ft. of Head
253
Temp. Range
35 Degrees to 105 Degrees F
Agency Compliance
EPA and CARB Certified Engine
Item
Engine Driven Pump
GPM of Water @ 60 Ft. of Head
224
Outlet
3" NPT
Solids Handling Capacity
1-1/4"
Number of Impellers
1
GPM of Water @ 70 Ft. of Head
176
Impeller Material
High Chrome
GPM of Water @ 30 Ft. of Head
306
Self-Priming
Yes
GPM of Water @ 20 Ft. of Head
324
Engine Brand
Honda
Volute/Wear Plate
Spheroid Graphite Ductile Iron
Seal Material
Buna-N/Silicon Carbide
Ignition Type
Recoil-Start
Mechanical Seal
Silicon Carbide, Buna N
Roll Bar Frame
Steel
HP
7 1/10 hp
Check Valve
Buna N
Engine RPM
3600
Application
Trash
Casing Adapter
High Chrome
Sensor Type
Low Oil
GPM of Water @ 10 Ft. of Head
335
Tank Capacity
5.6 qt
GPM of Water @ 40 Ft. of Head
278
Impeller Type
Semi-Open
Max. Pressure
38.5 psi
Max. Suction Lift
26 ft
Material of Construction
Aluminum
Inlet
3 in NPT
Max. Head
89 ft
Pump Mechanism
Centrifugal
Flow Rate @ 60 Ft. of Head
224 gpm
Flow Rate @ 40 Ft. of Head
278 gpm
Power Source
Gas Engine
Inlet Standard
NPT
Body Material
Aluminum
Discharge
3 in NPT
Impeller Design
Semi-Open
Discharge Standard
NPT
Maximum Discharge Pressure
39 psi
Volute Material
Ductile Iron
RPM
3,600 RPM
Frame Design - Pumps
Full Tubular Frame
Standards
CARB Certified Engine, EPA Certified Engine
Flow Rate @ 10 Ft. of Head
335 gpm
Flow Rate @ 80 Ft. of Head
68 gpm
Frame Material
Steel
Flow Rate @ 20 Ft. of Head
324 gpm
Frame Design
Roll Cage
Engine Series
GX240
Flow Rate @ 20 ft of Head
324 gpm
Flow Rate @ 10 ft of Head
335 gpm
Rotation Speed - Maximum
3,600 RPM
Discharge Pressure - Maximum
39 psi
Horsepower
7 1/10 hp
Suction Lift - Maximum
26 ft
Feet of Head - Maximum
89 ft

Description

Engine Driven Pump, Engine Size 242 cc, HP 7 1/10 hp, Tank Capacity 5.6 qt, Ignition Type Recoil-Start, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Ductile Iron, Seal Material Buna-N/Silicon Carbide, Frame Material Steel, Flow Rate @ 10 Ft. of Head 335 gpm, Flow Rate @ 20 Ft. of Head 324 gpm, Flow Rate @ 40 Ft. of Head 278 gpm, Flow Rate @ 60 Ft. of Head 224 gpm, Flow Rate @ 80 Ft. of Head 68 gpm, Max. Head 89 ft, Max. Suction Lift 26 ft
