Dayton

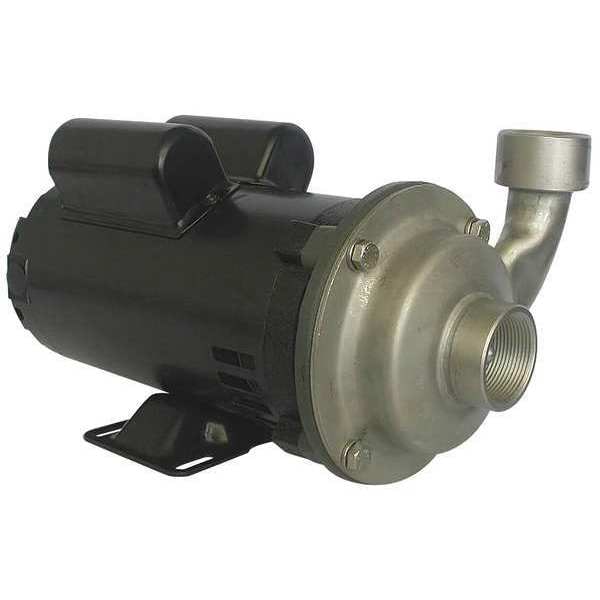

Pump, 1/2 HP, 115/230V, 7.2/3.6 Amp
Mfr # 4JMV3
Zoro # G0716143
Free Shipping & Returns
$557.99
Item successfully saved to ''
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- HP 1/2 hp
- Housing Material 304 Stainless Steel
- Phase Single
- Voltage 115/230
- Max. GPM @ Head 38 gpm @ 5 ft
Customers Also Purchased
- Brand Dayton
-
MFR #
4JMV3
-
Zoro #
G0716143
- UPC # 190735326589
- Country of Origin China
- Category Chemical-Resistant Pumps
Dimensions
Manufacturers Warranty Length | 1 yr |
Max. Dia. Solids | 1/8 in |
Width | 6 1/2 in |
Height | 7 7/8 in |
Length | 13 5/16 in |
Overall Height | 7.9 in |
Overall Length | 13.3 in |
Overall Width | 6.5 in |
Discharge Pipe Size | 3/4 in |
Cord Length | Not Applicable |
Intake Pipe Size | 3/4 in |
Solid Diameter (Maximum) | 0.13 in |
Shaft Outer Diameter | 7/16 in |
Details
Item | Chemical Resistant Centrifugal Pump |
HP | 1/2 hp |
Housing Material | 304 Stainless Steel |
Phase | Single |
Voltage | 115/230 |
Max. GPM @ Head | 38 gpm @ 5 ft |
Max. Head | 50 ft |
Inlet | 3/4 in NPT |
Best Efficiency GPM @ Head | 28 gpm @ 22 ft |
Outlet | 3/4 in NPT |
Motor Enclosure | Open Dripproof |
Bearing Type | Ball |
NEMA/IEC Frame | 56J |
Duty | Continuous |
Motor RPM | 3,450 RPM |
Motor Type | Permanent Split Capacitor |
Application | Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating |
Drain Plug | No |
Port Rotation | 90 Degrees Increments |
Impeller Type | Closed |
Max. Fluid Viscosity | 31 SUS |
Inlet Pressure | 128 psi |
GPM of Water @ 5 Ft. of Head | 38 |
Wetted Materials | 304 Stainless Steel, Carbon, Ceramic, Viton |
Amps | 7.2/3.6 |
Seal Type | Mechanical |
GPM of Water @ 25 Ft. of Head | 26 |
Impeller Material | 304 Stainless Steel |
Shaft Material | Stainless Steel |
GPM of Water @ 40 Ft. of Head | 5 |
Min. GPM @ Head | 5 gpm @ 40 ft |
Service Factor | 1.5 |
Best Efficiency Range GPM @ Head | 24 to 33 gpm @ 28 to 12 ft |
GPM of Water @ 10 Ft. of Head | 34 |
Seal Material | Carbon, Ceramic, Stainless Steel, Viton |
Agency Compliance | CUS |
GPM of Water @ 30 Ft. of Head | 20 |
Max. Specific Gravity | 1.0 |
GPM of Water @ 20 Ft. of Head | 29 |
GPM of Water @ 15 Ft. of Head | 32 |
Max. Liquid Temp. | 200 Degrees F |
Max. Case Pressure | 150 psi |
Hz | 60 |
Includes | Manual |
Screw Material | Stainless Steel |
Volute Material | 304 Stainless Steel |
Standards | CUS |
Compatible Motor Frame | 56J NEMA |
Flow Rate @ 15 ft of Head (Maximum) | 32 gpm |
Flow Rate @ 60 ft of Head (Maximum) | Not Applicable |
Priming | Manual |
Discharge Pipe Type | NPT |
Viscosity (Maximum) | 31 SUS |
Current | 7.2 or 3.6 A |
Media Temperature (Maximum) | 200 Degrees F |
Discharge Rotation | 90 Degrees Increments |
Specific Gravity (Maximum) | 1 |
Flow Rate @ 1 ft of Head (Maximum) | 36.5 gpm |
Wetted Material | 304 Stainless Steel, Carbon, Ceramic, Viton |
Flow Rate (Maximum) | 38 gpm |
Ambient Temperature (Minimum) | 40 Degrees F |
Feet of Head (Maximum) | 50 ft |
Ambient Temperature (Maximum) | 104 Degrees F |
Horsepower (Maximum) | 1/2 hp |
Shut Off Pressure (Maximum) | 150 psi |
Motor Speed (Maximum) | 3,450 RPM |
Impeller Design | Closed |
Media Temperature (Minimum) | 40 Degrees F |
Flow Rate @ 40 ft of Head (Maximum) | 5 gpm |
Frequency | 60 Hz |
Flow Rate (Minimum) | 5 gpm |
Electrical Connection Type | Not Applicable |
Intake Pipe Type | NPT |
Flow Rate @ 5 ft of Head (Maximum) | 35.5 gpm |
Best Efficiency Flow | 28 gpm |
Flow Rate @ 80 ft of Head (Maximum) | Not Applicable |
Flow Rate @ 10 ft of Head (Maximum) | 34 gpm |
Case Pressure (Maximum) | 150 psi |
Discharge Port | 3/4 in NPT |
Flow Rate @ 20 ft of Head (Maximum) | 29 gpm |
Best Efficiency Head | 22 ft |
Duty Cycle | Continuous |
Nameplate Voltage | 115/230V AC |
For Use With Potable Systems | No |
Flow Rate @ 30 ft of Head (Maximum) | 20 gpm |
Suction Port | 3/4 in NPT |
Flow Rate @ 25 ft of Head (Maximum) | 26 gpm |
Flow Rate @ 70 ft of Head (Maximum) | Not Applicable |
Description
Centrifugal Pump, Discharge Pipe Size 3/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 50 ft, Flow Rate (Maximum) 38 gpm, Horsepower (Maximum) 1/2 hp, Housing Material 304 Stainless Steel, Impeller Design Closed, Impeller Material 304 Stainless Steel, Intake Pipe Size 3/4 in, Intake Pipe Type NPT, Media Temperature (Maximum) 200 Degrees F, Phase Single, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 31 SUS, Flow Rate @ 10 ft of Head (Maximum) 34 gpm
